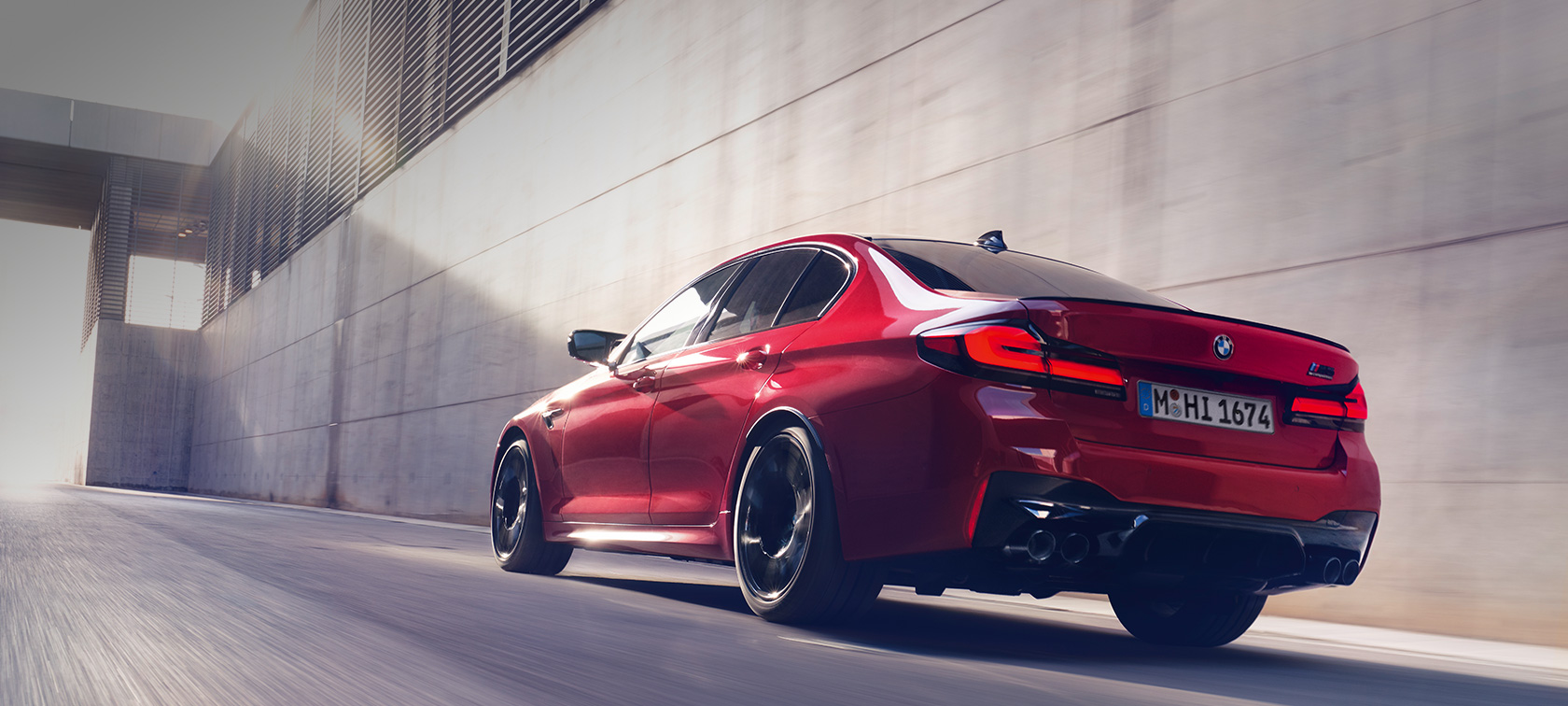

BMW M5 Competition F90 LCI Facelift 2020 BMW Individual Imola Red three-quarter rear view driving

THE M5

BMW M

BMW 5 SERIES SALOON M AUTOMOBILES: ENGINES & TECHNICAL DATA

THE M5BMW 5 SERIES SALOON M AUTOMOBILES: ENGINES & TECHNICAL DATA
BMW M5 Competition
Build and price

BMW M5 Competition, BMW M5 and BMW M550i xDrive Saloon – engines, facts and dimensions.

The key facts and figures for the BMW 5 Series Saloon M Automobiles at a glance: find out all about engines, consumption, CO2 emissions and dimensions of the various BMW M5 models. Compare impressive performance data such as displacement, hp, Nm and acceleration – and discover which of these three exceptional sports saloons suits you best.

Read more

ENGINES AND TECHNICAL DATA OF THE BMW 5 SERIES SALOON M AUTOMOBILES.

Select Model
Select Transmission

System Power

Fuel type Petrol
System power in kW (hp) 390 (530)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 390 (530) / 5500 - 6000
Max torque(Nm) per 1/min 750 / 1800 - 4600

Performance

Top Speed 250
Acceleration 3.8

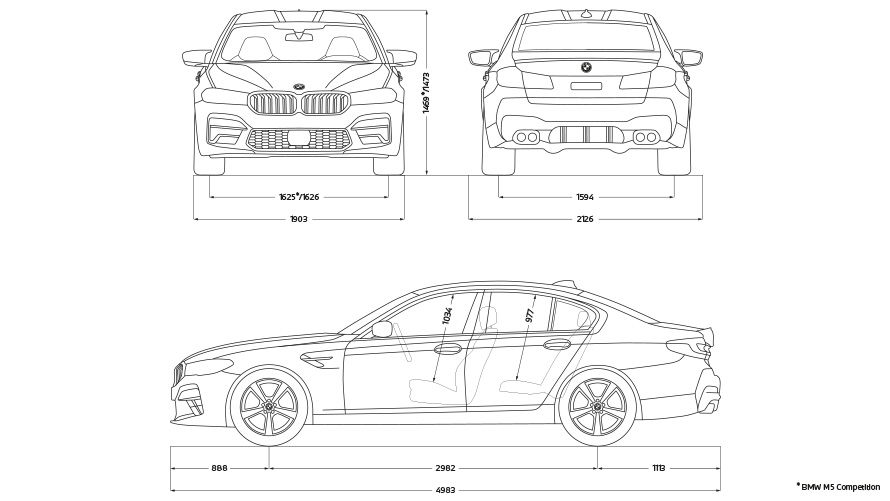

Measurements

Length/Width/Height 4,972 / 1,868 / 1,467
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 131
Measurements
Measurements

Weight

Weight not loaded in kg 1,990
Weight Max in kg 2,560
Permitted load in kg 645
Permitted Axle load front/rear in kg 1,260 / 1,365
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 530

Wheels

Tire front 245/40 R19 98 Y XL
Tire rear 275/35 R19 100 Y XL
Rim front 8Jx19 LM
Rim rear 9Jx19 LM

Consumption

Combined in l/100km 10.6 - 10.8
Tank capacity in l 68

CO2 Emissions

Combined in g/km 243 - 247

System Power

Fuel type Petrol
System power in kW (hp) 460 (625)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 460 (625) / 6,000
Max torque(Nm) per 1/min 750 / 1800 - 5860

Performance

Top Speed 250
Acceleration 3.3

Measurements

Length/Width/Height 4,983 / 1,903 / 1,469
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,982 / 12.6
Ground clearance in mm 120
Measurements
Measurements

Weight

Weight not loaded in kg 1,970
Weight Max in kg 2,440
Permitted load in kg 545
Permitted Axle load front/rear in kg 1,215 / 1,260
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 530

Wheels

Tire front 275/35 ZR20 (102Y) XL
Tire rear 285/35 ZR20 (104Y) XL
Rim front 9,5J x 20
Rim rear 10,5J x 20

Consumption

Combined in l/100km 11.1 - 11.3
Tank capacity in l 68

CO2 Emissions

Combined in g/km 254 - 258
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
​

Fuel consumption and CO2 emissions.

  • The values for fuel consumption, CO2 emissions and energy consumption shown have been determined according to the WLTP test. WLTP has been used as the applicable fuel and energy consumption and CO2 emissions figure from 1 January 2021 for vehicle registration tax (VRT). The figures were previously based on the NEDC equivalent. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load. For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel. Plug-in hybrid and battery electric vehicles require mains electricity for charging. More information on the WLTP test procedure can be found here: https://www.bmw.ie/en/topics/fascination-bmw/efficient-dynamics/consumption-emissions.html

    A guide on fuel economy and CO2 emissions which contains data for all new passenger car models is available at any point of sale free of charge.
