Technical data for the BMW 2 Series Gran Coupé.
| 1 | |
|---|---|
|
Powertrain type |
Petrol – 48 Volt Mild-Hybrid |
|
Power in kW (hp) |
125 (170) 2 |
|
Torque in Nm |
280 2 |
|
Transmission |
7-speed, automatic |
|
Drivetrain |
Front-wheel drive |
| 1 | |
|---|---|
|
Cylinders |
3 |
|
Displacement in cm³ |
1,499 |
|
Nominal power in kW (hp)/1/min |
115 (156) / 4,700 - 6,500 |
|
Nominal torque in Nm/1/min |
240 / 1,500 - 4,400 |
|
(Nominal) power/30-minutes-power in kW (hp) |
15 (20) / - |
|---|---|
|
(Nominal) torque in Nm |
55 |
|
Acceleration 0–100 km/h in s |
7.9 3 |
|---|---|
|
Top speed in km/h |
230 |
| 1 , 4 | |
|---|---|
|
Fuel consumption, combined WLTP in l/100km |
5.5–5.3 |
|
CO2 emissions, combined WLTP in g/km |
126–120 |
|
Pass-by noise in dB(A) |
67 8 |
|
Stationary noise level in dB(A) / 1/min |
78 / 3,750 8 |
| 5 | |
|---|---|
|
Battery capacity in kWh |
0.9 |
|

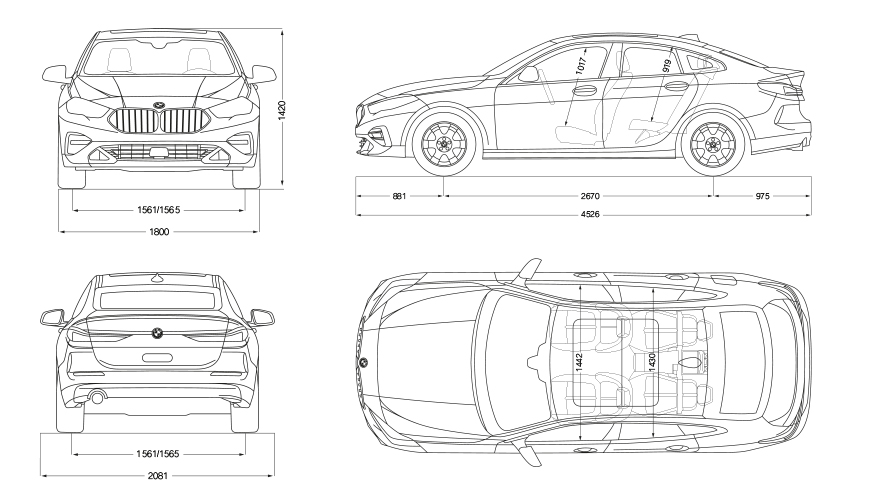

4,546 mm
|
|
|
1,800 mm
|
|
|
1,445 mm
|
|
|
Length in mm |
4,546 |
|
Width in mm |
1,800 |
|
Height in mm |
1,445 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,070 |
|
Wheelbase in mm |
2,670 |
|
Vehicle curb weight in kg 6 |
1,525 |
|
Permissible gross weight in kg |
1,985 |
|
Payload in kg |
535 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg 7 |
1,300 / 75 |
|
Luggage capacity in l |
360 |
|
Tank capacity in l |
49 |
| 1 | |
|---|---|
|
Powertrain type |
Petrol – 48 Volt Mild-Hybrid |
|
Power in kW (hp) |
160 (218) 2 |
|
Torque in Nm |
360 2 |
|
Transmission |
7-speed, automatic |
|
Drivetrain |
All-wheel drive |
| 1 | |
|---|---|
|
Cylinders |
4 |
|
Displacement in cm³ |
1,998 |
|
Nominal power in kW (hp)/1/min |
150 (204) / 5,000 - 6,500 |
|
Nominal torque in Nm/1/min |
320 / 1,500 - 4,000 |
|
(Nominal) power/30-minutes-power in kW (hp) |
15 (20) / - |
|---|---|
|
(Nominal) torque in Nm |
55 |
|
Acceleration 0–100 km/h in s |
6.4 3 |
|---|---|
|
Top speed in km/h |
250 |
| 1 , 4 | |
|---|---|
|
Fuel consumption, combined WLTP in l/100km |
6.1–5.9 |
|
CO2 emissions, combined WLTP in g/km |
138–133 |
|
Pass-by noise in dB(A) |
65 8 |
|
Stationary noise level in dB(A) / 1/min |
74 / 3,750 8 |
| 5 | |
|---|---|
|
Battery capacity in kWh |
0.9 |
|
4,546 mm
|
|
|
1,800 mm
|
|
|
1,445 mm
|
|
|
Length in mm |
4,546 |
|
Width in mm |
1,800 |
|
Height in mm |
1,445 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,070 |
|
Wheelbase in mm |
2,670 |
|
Vehicle curb weight in kg 6 |
1,640 |
|
Permissible gross weight in kg |
2,110 |
|
Payload in kg |
545 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg 7 |
1,300 / 75 |
|
Luggage capacity in l |
360 |
|
Tank capacity in l |
49 |
| 1 | |
|---|---|
|
Powertrain type |
Petrol |
|
Power in kW (hp) |
221 (300) |
|
Torque in Nm |
400 |
|
Transmission |
7-speed, automatic |
|
Drivetrain |
All-wheel drive |
| 1 | |
|---|---|
|
Cylinders |
4 |
|
Displacement in cm³ |
1,998 |
|
Nominal power in kW (hp)/1/min |
221 (300) / 5,750 - 6,500 |
|
Nominal torque in Nm/1/min |
400 / 2,000 - 4,500 |
|
Acceleration 0–100 km/h in s |
4.9 3 |
|---|---|
|
Top speed in km/h |
250 |
| 1 , 4 | |
|---|---|
|
Fuel consumption, combined WLTP in l/100km |
8.2–7.5 |
|
CO2 emissions, combined WLTP in g/km |
185–170 |
|
Pass-by noise in dB(A) |
67 8 |
|
Stationary noise level in dB(A) / 1/min |
73 / 3,750 8 |
|
4,546 mm
|
|
|
1,800 mm
|
|
|
1,445 mm
|
|
|
Length in mm |
4,546 |
|
Width in mm |
1,800 |
|
Height in mm |
1,445 |
|
Width incl. mirrors (driver / passenger side) in mm |
2,070 |
|
Wheelbase in mm |
2,670 |
|
Vehicle curb weight in kg 6 |
1,650 |
|
Permissible gross weight in kg |
2,130 |
|
Payload in kg |
555 |
|
Optionally delivered with support for trailer load, braked, up to 12% / towbar download in kg 7 |
750 / 75 |
|
Luggage capacity in l |
430 |
|
Tank capacity in l |
49 |
BMW wheels & tyres.
We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
Consumption and CO2 emissions.
BMW 220 M Sport Gran Coupé: Fuel consumption, combined WLTP in l/100 km: 5.5–5.3; CO2 emissions, combined WLTP in g/km: 126–120
All vehicles, equipment, combination possibilities and varieties shown here are examples and can differ in your country.
