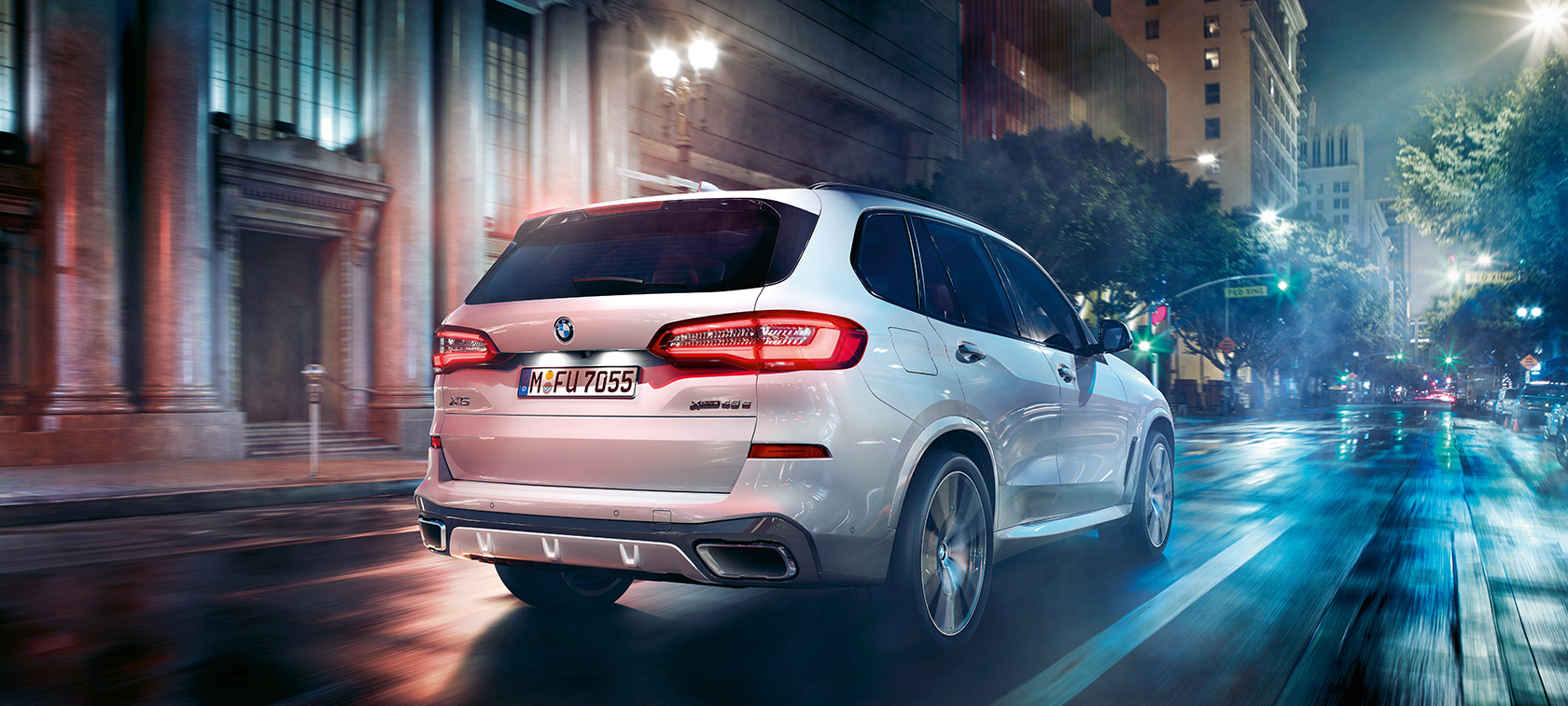

BMW X5 G05 2018 Mineral White metallic three-quarter rear view driving

THE X5

BMW X5: ENGINES & TECHNICAL DATA.

THE X5BMW X5: ENGINES & TECHNICAL DATA.

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X5.

Read more

TECHNICAL DATA OF THE BMW X5.

System Power

Fuel type Driving electric and with petrol
System power in kW (hp) 290 (394) "1"
Max. Torque (Nm) 600 "1"
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 83 (113)
Nominal torque in Nm 265

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 210 (286) / 5000 - 6000
Max torque(Nm) per 1/min 450 / 1600 - 3500

Range Charging

WLTP combined electric range in km 82 - 88
Max. charging performance AC in kW 3.7
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 7.25

Performance

Top Speed 235
Top Speed Electric 135
Acceleration 5.6

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,510
Weight Max in kg 3,150
Permitted load in kg 715
Permitted Axle load front/rear in kg 1,390 / 1,810
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 500 - 1720

Wheels

Tire front 265/50 R19 110 W XL
Tire rear 265/50 R19 110 W XL
Rim front 9Jx19 LM
Rim rear 9Jx19 LM

Consumption

Fuel consumption Weighted 1.2 - 1.4
Electric consumption AC Weighted 24.3 - 25.8
Tank capacity in l 69

CO2 Emissions

CO2 weighted 27 - 32
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Driving electric and with petrol
System power in kW (hp) 290 (394) "1"
Max. Torque (Nm) 600 "1"
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 83 (113)
Nominal torque in Nm 265

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 210 (286) / 5000 - 6000
Max torque(Nm) per 1/min 450 / 1600 - 3500

Range Charging

WLTP combined electric range in km 82 - 88
Max. charging performance AC in kW 3.7
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 7.25

Performance

Top Speed 235
Top Speed Electric 135
Acceleration 5.6

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,510
Weight Max in kg 3,150
Permitted load in kg 715
Permitted Axle load front/rear in kg 1,390 / 1,810
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 500 - 1720

Wheels

Tire front 275/35 R22 104 Y XL
Tire rear 315/30 R22 107 Y XL
Rim front 9,5Jx22 LM
Rim rear 10,5Jx22 LM

Consumption

Fuel consumption Weighted 1.2 - 1.4
Electric consumption AC Weighted 24.3 - 25.7
Tank capacity in l 69

CO2 Emissions

CO2 weighted 27 - 31
"1" - This is composed of torque from the internal combustion engine (quoted maximum value) and the electric drive (up to quoted maximum value). Electric drive figures depend on battery charging status.

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
System power in kW (hp) 245 (333)
Max. Torque (Nm) 450
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 245 (333) / 5500 - 6250
Max torque(Nm) per 1/min 450 / 1600 - 4800

Performance

Top Speed 243
Acceleration 5.7

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,175
Weight Max in kg 2,840
Permitted load in kg 740
Permitted Axle load front/rear in kg 1,320 / 1,670
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 255/55 R18 109 W XL
Tire rear 255/55 R18 109 W XL
Rim front 8,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 9.1 - 10.1
Tank capacity in l 83

CO2 Emissions

CO2 charge sustaining combined 209 - 229

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
System power in kW (hp) 245 (333)
Max. Torque (Nm) 450
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 245 (333) / 5500 - 6250
Max torque(Nm) per 1/min 450 / 1600 - 4800

Performance

Top Speed 243
Acceleration 5.7

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,175
Weight Max in kg 2,840
Permitted load in kg 740
Permitted Axle load front/rear in kg 1,320 / 1,670
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/35 R22 104 Y XL
Tire rear 315/30 R22 107 Y XL
Rim front 9,5Jx22 LM
Rim rear 10,5Jx22 LM

Consumption

Fuel Consumption charge sustaining combined 9 - 10.1
Tank capacity in l 83

CO2 Emissions

CO2 charge sustaining combined 205 - 228

System Power

Fuel type Petrol
System power in kW (hp) 390 (530)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 390 (530) / 5500 - 6000
Max torque(Nm) per 1/min 750 / 1800 - 4600

Performance

Top Speed 250
Acceleration 4.3

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,335
Weight Max in kg 2,995
Permitted load in kg 735
Permitted Axle load front/rear in kg 1,430 / 1,645
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/40 R21 107 Y XL
Tire rear 315/35 R21 111 Y XL
Rim front 9,5Jx21 LM
Rim rear 10,5Jx21 LM

Consumption

Combined in l/100km 11.5 - 11.8
Tank capacity in l 83

CO2 Emissions

Combined in g/km 263 - 270

System Power

Fuel type Petrol
System power in kW (hp) 460 (625)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Engine performance in kW (hp) 460 (625) / 6,000
Max torque(Nm) per 1/min 750 / 1800 - 5860

Performance

Top Speed 250
Acceleration 3.8

Measurements

Length/Width/Height 4,938 / 2,015 / 1,748
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,972 / 12.8
Ground clearance in mm 206
Measurements
Measurements

Weight

Weight not loaded in kg 2,410
Weight Max in kg 3,000
Permitted load in kg 665
Permitted Axle load front/rear in kg 1,410 / 1,630
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 295/35 ZR21 107Y XL
Tire rear 315/30 ZR22 107Y XL
Rim front 10,5J x 21 EH2
Rim rear 11,5J x 22 EH2

Consumption

Combined in l/100km 13.4 - 13.6
Tank capacity in l 83

CO2 Emissions

Combined in g/km 304 - 307

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
System power in kW (hp) 210 (286)
Max. Torque (Nm) 650
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 210 (286) / 4,000
Max torque(Nm) per 1/min 650 / 1500 - 2500

Performance

Top Speed 235
Acceleration 6.1

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,265
Weight Max in kg 2,940
Permitted load in kg 750
Permitted Axle load front/rear in kg 1,375 / 1,665
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,900 / 1,900
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 255/55 R18 109 W XL
Tire rear 255/55 R18 109 W XL
Rim front 8,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 6.8 - 7.5
Tank capacity in l 80

CO2 Emissions

CO2 charge sustaining combined 179 - 197

System Power

System power in kW (hp) 250 (340)
Max. Torque (Nm) 700
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 250 (340) / 4,400
Max torque(Nm) per 1/min 700 / 1750 - 2250

Performance

Top Speed 245
Acceleration 5.5

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,275
Weight Max in kg 2,940
Permitted load in kg 740
Permitted Axle load front/rear in kg 1,375 / 1,635
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 255/55 R18 109 W XL
Tire rear 255/55 R18 109 W XL
Rim front 8,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 7 - 7.6
Tank capacity in l 80

CO2 Emissions

CO2 charge sustaining combined 184 - 200

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
System power in kW (hp) 210 (286)
Max. Torque (Nm) 650
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 210 (286) / 4,000
Max torque(Nm) per 1/min 650 / 1500 - 2500

Performance

Top Speed 235
Acceleration 6.1

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,265
Weight Max in kg 2,940
Permitted load in kg 750
Permitted Axle load front/rear in kg 1,375 / 1,665
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/35 R22 104 Y XL
Tire rear 315/30 R22 107 Y XL
Rim front 9,5Jx22 LM
Rim rear 10,5Jx22 LM

Consumption

Fuel Consumption charge sustaining combined 6.7 - 7.5
Tank capacity in l 80

CO2 Emissions

CO2 charge sustaining combined 175 - 197

System Power

System power in kW (hp) 250 (340)
Max. Torque (Nm) 700
Gearbox 8-speed, automatic
Drive Type all wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 250 (340) / 4,400
Max torque(Nm) per 1/min 700 / 1750 - 2250

Performance

Top Speed 245
Acceleration 5.5

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214
Measurements
Measurements

Weight

Weight not loaded in kg 2,275
Weight Max in kg 2,940
Permitted load in kg 740
Permitted Axle load front/rear in kg 1,375 / 1,635
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/35 R22 104 Y XL
Tire rear 315/30 R22 107 Y XL
Rim front 9,5Jx22 LM
Rim rear 10,5Jx22 LM

Consumption

Fuel Consumption charge sustaining combined 6.9 - 7.6
Tank capacity in l 80

CO2 Emissions

CO2 charge sustaining combined 181 - 199
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
