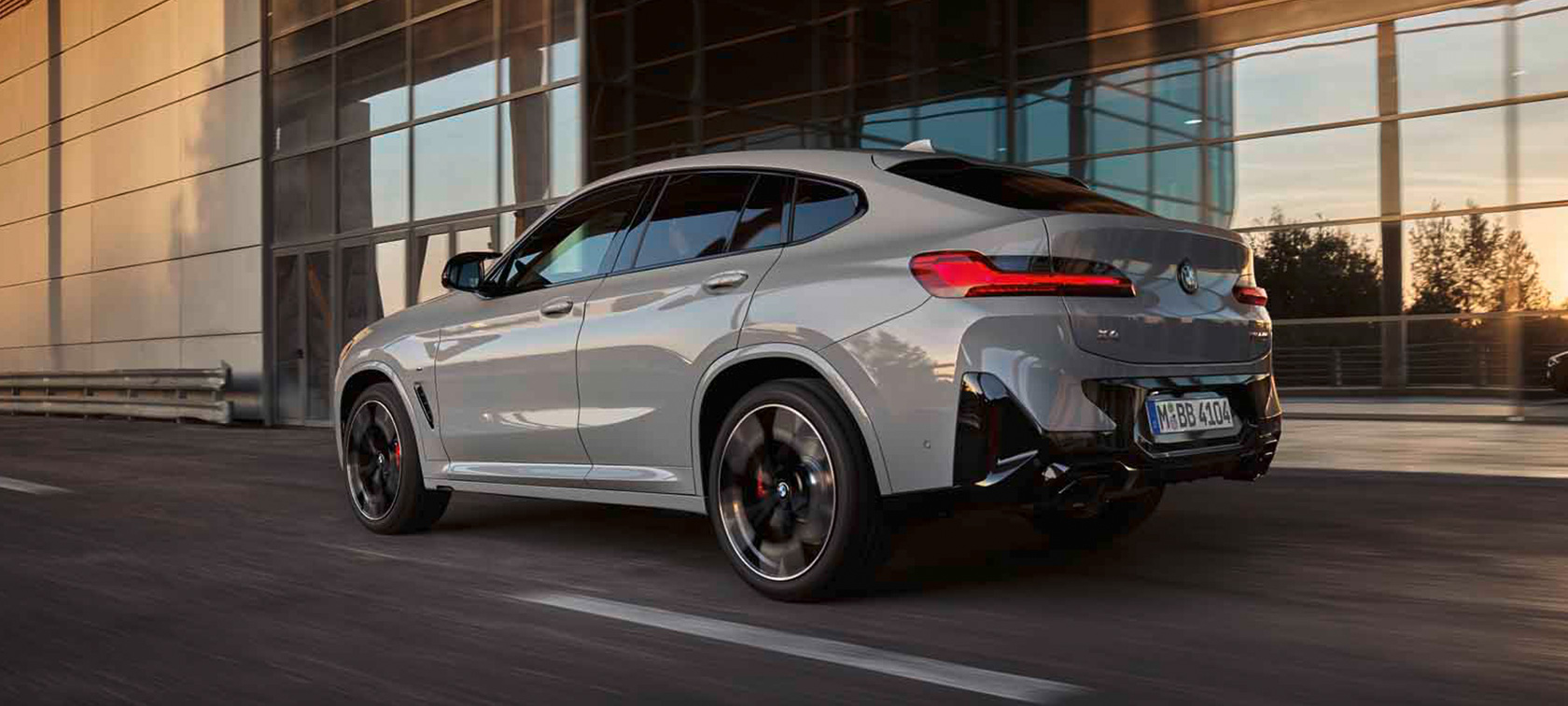

BMW X4 G02 three-quarter rear view driving 2021

THE X4

THE BMW X4: ENGINES & TECHNICAL DATA.

THE X4THE BMW X4: ENGINES & TECHNICAL DATA.
BMW X4
Build & Price

TECHNICAL DATA OF THE BMW X4.

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
Power in kW (hp) 265 (360)
Torque in Nm 500
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,998
Engine performance in kW (hp) 265 (360) / 5200 - 6500
Max torque(Nm) per 1/min 500 / 1900 - 5000

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.9

Measurements

Length/Width/Height 4,752 / 1,938 / 1,621
Width incl. mirrors (driver / passenger side) in mm 2138 (1080 / 1058)
Wheelbase in mm 2,864 / 12.1
Ground clearance in mm 204
BMW X4 G02 technical data sketch
BMW X4 G02 technical data sketch

Weight

Weight not loaded in kg 1,995
Weight max in kg 2,500
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,220 / 1,425
Allowed unbraked trailer load / drawbar load in kg 750 / 100
Luggage capacity in l 525 - 1430

Wheels

Tire front 245/45 R20 103 W XL
Tire rear 275/40 R20 106 W XL
Rim front 8Jx20 LM
Rim rear 9,5Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 9 - 9.2
Fuel capacity in l 65

CO2 Emissions

CO2 charge sustaining combined 205 - 209

System Power

Fuel type Petrol
Power in kW (hp) 375 (510)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 375 (510) / 6,250
Max torque(Nm) per 1/min 650 / 2750 - 5500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 3.8

Measurements

Length/Width/Height 4,754 / 1,927 / 1,620
Width incl. mirrors (driver / passenger side) in mm 2138 (1080 / 1058)
Wheelbase in mm 2,864 / 12.6
Ground clearance in mm 206
BMW X4 G02 technical data sketch
BMW X4 G02 technical data sketch

Weight

Weight not loaded in kg 2,085
Weight max in kg 2,500
Permitted load in kg 490
Permitted Axle load front/rear in kg 1,185 / 1,425
Allowed unbraked trailer load / drawbar load in kg 750 / 100
Luggage capacity in l 525 - 1430

Wheels

Tire front 255/40 ZR21 102Y XL
Tire rear 265/40 ZR21 105Y XL
Rim front 9,5J x 21 EH2
Rim rear 10J x 21 EH2

Consumption

Fuel consumption, combined WLTP in l/100km 10.7 - 10.8
Fuel capacity in l 65

CO2 Emissions

CO2 emissions, combined WLTP in g/km 244 - 247

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 140 (190)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 7.9

Measurements

Length/Width/Height 4,751 / 1,918 / 1,621
Width incl. mirrors (driver / passenger side) in mm 2138 (1080 / 1058)
Wheelbase in mm 2,864 / 12.1
Ground clearance in mm 204
BMW X4 G02 technical data sketch
BMW X4 G02 technical data sketch

Weight

Weight not loaded in kg 1,915
Weight max in kg 2,450
Permitted load in kg 610
Permitted Axle load front/rear in kg 1,200 / 1,420
Allowed unbraked trailer load / drawbar load in kg 750 / 100
Luggage capacity in l 525 - 1430

Wheels

Tire front 245/40 R21 100 Y XL
Tire rear 275/35 R21 103 Y XL
Rim front 8,5Jx21 LM
Rim rear 9,5Jx21 LM

Consumption

Fuel Consumption charge sustaining combined 5.7 - 6.1
Fuel capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 150 - 160

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 210 (286)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 210 (286) / 4,000
Max torque(Nm) per 1/min 650 / 1500 - 2500

Performance

Maximum speed in km/h 245
Acceleration 0–100 km/h in s 5.7

Measurements

Length/Width/Height 4,751 / 1,918 / 1,621
Width incl. mirrors (driver / passenger side) in mm 2138 (1080 / 1058)
Wheelbase in mm 2,864 / 12.1
Ground clearance in mm 204
BMW X4 G02 technical data sketch
BMW X4 G02 technical data sketch

Weight

Weight not loaded in kg 2,010
Weight max in kg 2,530
Permitted load in kg 595
Permitted Axle load front/rear in kg 1,220 / 1,415
Allowed unbraked trailer load / drawbar load in kg 750 / 100
Luggage capacity in l 525 - 1430

Wheels

Tire front 245/40 R21 100 Y XL
Tire rear 275/35 R21 103 Y XL
Rim front 8,5Jx21 LM
Rim rear 9,5Jx21 LM

Consumption

Fuel Consumption charge sustaining combined 6.2 - 6.6
Fuel capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 163 - 174

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 250 (340)
Torque in Nm 700
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 250 (340) / 4,400
Max torque(Nm) per 1/min 700 / 1750 - 2250

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.9

Measurements

Length/Width/Height 4,752 / 1,938 / 1,621
Width incl. mirrors (driver / passenger side) in mm 2138 (1080 / 1058)
Wheelbase in mm 2,864 / 12.1
Ground clearance in mm 204
BMW X4 G02 technical data sketch
BMW X4 G02 technical data sketch

Weight

Weight not loaded in kg 2,095
Weight max in kg 2,560
Permitted load in kg 540
Permitted Axle load front/rear in kg 1,230 / 1,430
Allowed unbraked trailer load / drawbar load in kg 750 / 100
Luggage capacity in l 525 - 1430

Wheels

Tire front 245/45 R20 103 W XL
Tire rear 275/40 R20 106 W XL
Rim front 8Jx20 LM
Rim rear 9,5Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 6.8 - 7
Fuel capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 179 - 183
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
​

Fuel consumption and CO2 emissions of the BMW X4.

  • BMW X4 xDrive30i:
    Fuel consumption in l/100 km (combined): 8.5–7.5
    CO2 emissions in g/km (combined): 192–171

    BMW X4 M40i:
    Fuel consumption in l/100 km (combined): 9.5–8.7
    CO2 emissions in g/km (combined): 215–198


    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information about the official fuel consumption and the official specific CO2 emissions for new passenger models cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.

The figures for performance, consumption and CO2 emissions refer to vehicles with standard transmission.

(1) Performance data of petrol engines apply to vehicles using RON 98 fuel. Fuel consumption data apply to vehicles using reference fuels in accordance with EU Regulation 715/2007. Unleaded RON 91 and higher with a maximum ethanol content of 10% (E10) may also be used. BMW recommends RON 95 fuel. For high-performance automobiles, BMW recommends RON 98 fuel.

(2) Official data for fuel consumption, CO2 emissions, power consumption and electric range was determined in accordance with the prescribed measuring procedure and corresponds to European Regulation (EC) 715/2007 in the applicable version. For ranges, data determined as per WLTP takes into account any optional equipment (available on the German market in this case). For vehicles that have been newly type approved since 1 January 2021, only the official data according to WLTP exists. For more information about NEDC and WLTP measuring procedures visit www.bmw.com/wltp

(3) The EC unladen weight refers to a vehicle with standard equipment and does not include any optional extras. The unladen weight includes a 90% full tank and a driver weight of 75 kg. Optional equipment may affect the weight of the vehicle, the payload and the top speed if the selected equipment has an impact on the vehicle's aerodynamics.
