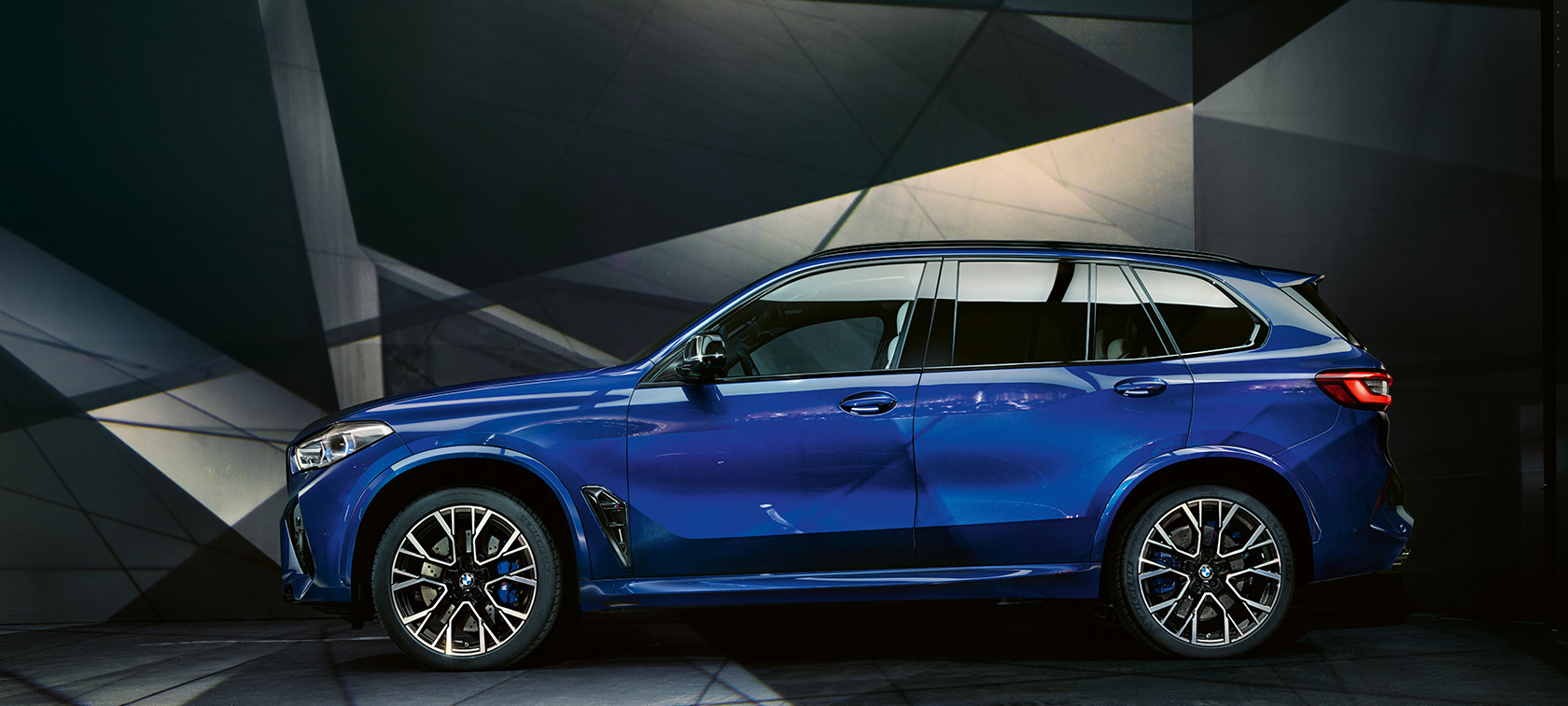

BMW X5 M Competition Marina Bay Blue metallic F95 side view

THE X5 M

BMW M

THE BMW X5 M AUTOMOBILES: ENGINES & TECHNICAL DATA

Here you can find the technical data of the BMW X5 M Automobiles – BMW X5 M Competition, BMW X5 M, BMW X5 M50i and BMW X5 M50d.

Read more
THE X5 MTHE BMW X5 M AUTOMOBILES: ENGINES & TECHNICAL DATA

Engines and technical data.

Select Model
Select Transmission

Engine

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Stroke/Drilling in mm 88.3 / 89
Engine performance in kW (hp) 460 (625) / 6000
Max torque(Nm) per 1/min 750 / 1800-5860
Compression:1 10

Performance

Top Speed 250
Acceleration 3.8

Measurements

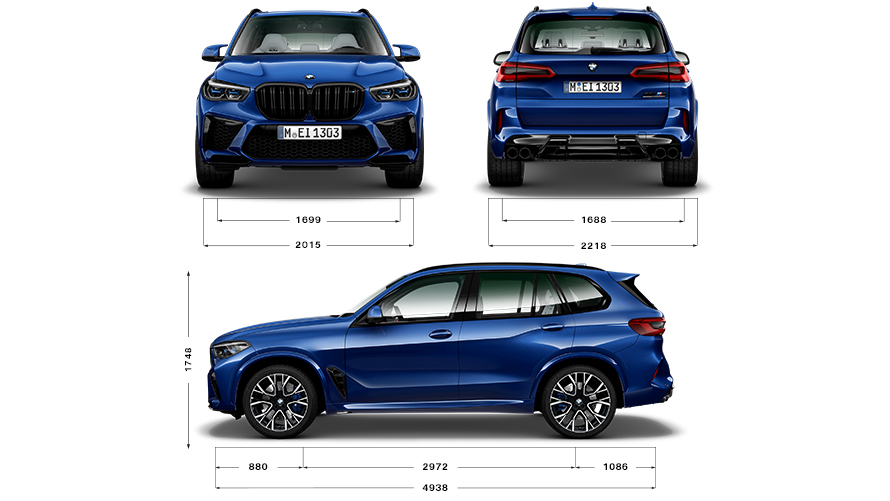

Length/Width/Height 4,938 / 2,015 / 1,748
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,972 / 12.8
Ground clearance in mm 206
Measurements
Measurements

Weight

Weight not loaded in kg 2,410
Weight Max in kg 3,000
Permitted load in kg 665
Permitted Axle load front/rear in kg 1,410 / 1,630
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700 / 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 295/35 ZR21 107Y XL
Tire rear 315/35 ZR21 111Y XL
Rim front 10,5 x 21
Rim rear 11,5 x 21

Consumption

Combined in l/100km 13.4 - 13.6
Tank capacity in l 83

CO2 Emissions

Combined in g/km 304 - 307

Fuel consumption and CO2 emissions.

  • The values for fuel consumption, CO2 emissions and energy consumption shown have been determined according to the WLTP test. WLTP has been used as the applicable fuel and energy consumption and CO2 emissions figure from 1 January 2021 for vehicle registration tax (VRT). The figures were previously based on the NEDC equivalent. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load. For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel. Plug-in hybrid and battery electric vehicles require mains electricity for charging. More information on the WLTP test procedure can be found here: https://www.bmw.ie/en/topics/fascination-bmw/efficient-dynamics/consumption-emissions.html

    A guide on fuel economy and CO2 emissions which contains data for all new passenger car models is available at any point of sale free of charge.
