BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA

Here you will find the key technical data for the BMW M235i xDrive Gran Coupé. Discover more about the engine, output, acceleration, top speed, fuel consumption, emissions and much more besides.

Read more
THE 2BMW M235i xDRIVE GRAN COUPÉ: ENGINES & TECHNICAL DATA
BMW M235i Gran Coupé

TECHNICAL DATA.

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 215
Acceleration 0–100 km/h in s 9.2

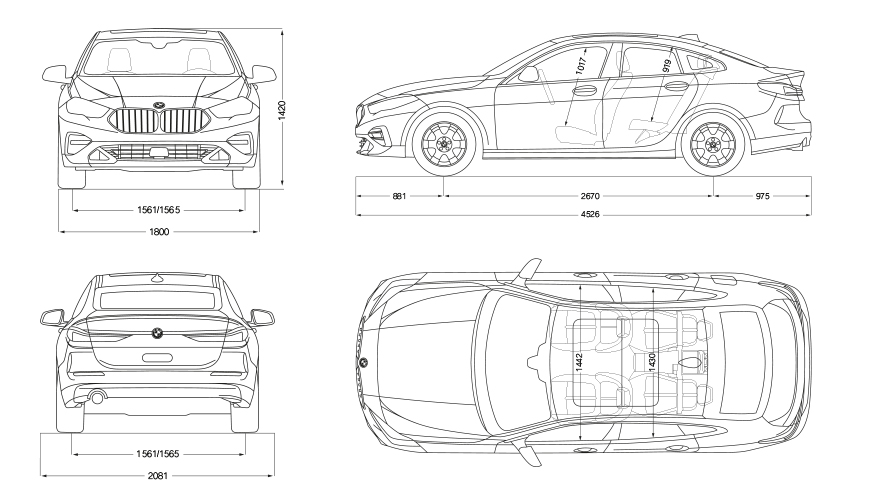

Measurements

Length/Width/Height 4,526 / 1,800 / 1,420
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 152

Weight

Weight not loaded in kg 1,425
Weight max in kg 1,885
Permitted load in kg 535
Permitted Axle load front/rear in kg 1,000 / 970
Allowed unbraked trailer load / drawbar load in kg 705 / 75
Luggage capacity in l 430

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.8 - 6.5
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 133 - 149

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 215
Acceleration 0–100 km/h in s 9.1

Measurements

Length/Width/Height 4,526 / 1,800 / 1,420
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 152

Weight

Weight not loaded in kg 1,450
Weight max in kg 1,905
Permitted load in kg 530
Permitted Axle load front/rear in kg 1,025 / 970
Allowed unbraked trailer load / drawbar load in kg 715 / 75
Luggage capacity in l 430

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.8 - 6.5
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 133 - 149

System Power

Fuel type Petrol
Power in kW (hp) 131 (178) "1"
Torque in Nm 280 "1"
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 131 (178) / 4750 - 5500
Max torque(Nm) per 1/min 280 / 1350 - 4200

Performance

Maximum speed in km/h 238
Acceleration 0–100 km/h in s 7.1

Measurements

Length/Width/Height 4,526 / 1,800 / 1,420
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 152

Weight

Weight not loaded in kg 1,505
Weight max in kg 1,965
Permitted load in kg 535
Permitted Axle load front/rear in kg 1,060 / 980
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 430

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 6.1 - 6.7
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 140 - 153
"1" - Depending on the environmental conditions, a temporary power boost adding approx. 10% to the max. output can be provided. The length of time that the peak output is available increases with falling ambient temperature (approx. 5 s at +25 °C, approx. 40 s at -20 °C).

System Power

Fuel type Petrol
Power in kW (hp) 225 (306)
Torque in Nm 450
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 225 (306) / 5000 - 6250
Max torque(Nm) per 1/min 450 / 1800 - 4500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.9

Measurements

Length/Width/Height 4,526 / 1,800 / 1,420
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 152

Weight

Weight not loaded in kg 1,645
Weight max in kg 2,105
Permitted load in kg 535
Permitted Axle load front/rear in kg 1,140 / 1,040
Luggage capacity in l 430

Wheels

Tire front 225/40 R18 92 Y XL
Tire rear 225/40 R18 92 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Fuel consumption, combined WLTP in l/100km 7.2 - 7.7
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 162 - 174
​

Fuel consumption and CO2 emissions.

  • BMW M235i xDrive Gran Coupé:
    Fuel consumption in l/100 km (combined): 7.1–6.7
    CO2 emissions in g/km (combined): 162–153

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
