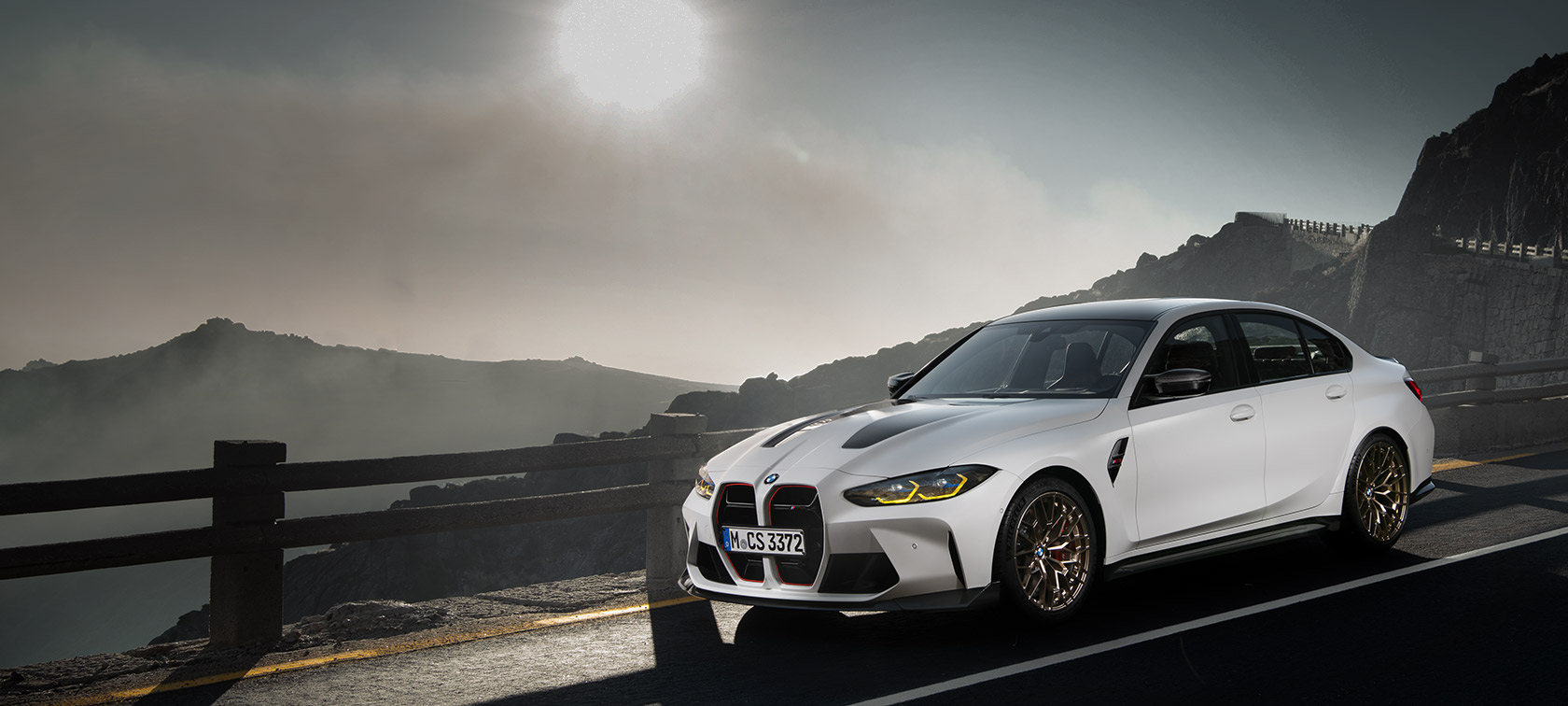

BMW M3 CS G80 side view driving on race track

THE M3

BMW M

THE NEW BMW 3 SERIES SALOON M MODELS: ENGINES & TECHNICAL DATA.

THE M3THE NEW BMW 3 SERIES SALOON M MODELS: ENGINES & TECHNICAL DATA.
BMW 3 Series Saloon M Models: Overview

The new BMW 3 Series Saloon M Models – engines, facts and dimensions.

BMW 3 SERIES SALOON M MODELS: TECHNICAL DATA.

System Power

Fuel type Petrol
Power in kW (hp) 375 (510)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 375 (510) / 6,250
Max torque(Nm) per 1/min 650 / 2750 - 5500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 3.9

Measurements

Length/Width/Height 4,794 / 1,903 / 1,433
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,857 / 12.2
Ground clearance in mm 120
BMW M3 Saloon G80 technical data sketch
BMW M3 Saloon G80 technical data sketch

Weight

Weight not loaded in kg 1,805
Weight max in kg 2,210
Permitted load in kg 480
Permitted Axle load front/rear in kg 1,080 / 1,180
Luggage capacity in l 480

Wheels

Tire front 275/40 ZR18 (103Y) XL
Tire rear 285/35 ZR19 (103Y) XL
Rim front 9,5Jx18
Rim rear 10,5Jx19

Consumption

Fuel consumption, combined WLTP in l/100km 9.8
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 223 - 224

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
Power in kW (hp) 275 (374)
Torque in Nm 500
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,998
Engine performance in kW (hp) 275 (374) / 5500 - 6500
Max torque(Nm) per 1/min 500 / 1900 - 5000

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.4

Measurements

Length/Width/Height 4,714 / 1,827 / 1,440
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 130
BMW M3 Saloon G80 technical data sketch
BMW M3 Saloon G80 technical data sketch

Weight

Weight not loaded in kg 1,770
Weight max in kg 2,245
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,115 / 1,230
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/45 R18 95 Y XL
Tire rear 255/40 R18 99 Y XL
Rim front 7,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 8.1 - 8.2
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 182 - 184

System Power

Fuel type Petrol
Power in kW (hp) 375 (510)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 375 (510) / 6,250
Max torque(Nm) per 1/min 650 / 2750 - 5500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 3.5

Measurements

Length/Width/Height 4,794 / 1,903 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,857 / 12.6
Ground clearance in mm 122
BMW M3 Saloon G80 technical data sketch
BMW M3 Saloon G80 technical data sketch

Weight

Weight not loaded in kg 1,855
Weight max in kg 2,260
Permitted load in kg 480
Permitted Axle load front/rear in kg 1,125 / 1,200
Luggage capacity in l 480

Wheels

Tire front 275/35 ZR19 (100Y) XL
Tire rear 285/30 ZR20 (99Y) XL
Rim front 9,5Jx19
Rim rear 10,5Jx20

Consumption

Fuel consumption, combined WLTP in l/100km 10 - 10.1
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 228 - 230

System Power

Fuel type Diesel – 48 Volt Mild-Hybrid
Power in kW (hp) 250 (340)
Torque in Nm 700
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Engine performance in kW (hp) 250 (340) / 4,400
Max torque(Nm) per 1/min 700 / 1750 - 2250

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.6

Measurements

Length/Width/Height 4,713 / 1,827 / 1,445
Width incl. mirrors (driver / passenger side) in mm 2068 (1040 / 1028)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 135
BMW M3 Saloon G80 technical data sketch
BMW M3 Saloon G80 technical data sketch

Weight

Weight not loaded in kg 1,875
Weight max in kg 2,340
Permitted load in kg 540
Permitted Axle load front/rear in kg 1,155 / 1,260
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 480

Wheels

Tire front 225/45 R18 95 Y XL
Tire rear 255/40 R18 99 Y XL
Rim front 7,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 6.1
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 159 - 161
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
​

Fuel consumption and CO2 emissions.

  • BMW M3 CS:
    Fuel consumption, combined WLTP in l/100 km: 10.4–10.1
    CO2 emissions, combined WLTP in g/km: 234–229

    BMW M3 Competition Saloon with M xDrive:
    Fuel consumption, combined WLTP in l/100 km: 10.1–10.0
    CO2 emissions, combined WLTP in g/km: 230–228

    BMW M3 Competition Saloon:
    Fuel consumption, combined WLTP in l/100 km: 9.8
    CO2 emissions, combined WLTP in g/km: 224–223

    BMW M3 Saloon:
    Fuel consumption, combined WLTP in l/100 km: 10.2–10.0
    CO2 emissions, combined WLTP in g/km: 231–227

    BMW M340i xDrive Saloon:
    Fuel consumption, combined WLTP in l/100 km: 8.5–7.8
    CO2 emissions, combined WLTP in g/km: 192–177

    BMW M340i Saloon:
    Fuel consumption, combined WLTP in l/100 km: 8.5–7.8(1)
    CO2 emissions, combined WLTP in g/km: 192–177(1)

    BMW M340d xDrive Saloon:
    Fuel consumption, combined WLTP in l/100 km: 6.4–5.9
    CO2 emissions, combined WLTP in g/km: 169–154


    (1) Provisional figures

    Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp

FUEL CONSUMPTION AND CO2 EMISSIONS.



BMW M3 CS:

Fuel consumption, combined WLTP in l/100 km: 10.2–10.3

CO2 emissions, combined WLTP in g/km: 230–232



BMW M3 Competition Saloon with M xDrive:

Fuel consumption, combined WLTP in l/100 km: 10–10.1

CO2 emissions, combined WLTP in g/km: 228–230



BMW M3 Competition Saloon:

Fuel consumption, combined WLTP in l/100 km: 9.8

CO2 emissions, combined WLTP in g/km: 223–224



BMW M3 Saloon:

Fuel consumption, combined WLTP in l/100 km: 10.2–10.0

CO2 emissions, combined WLTP in g/km: 231–227



BMW M340i xDrive Saloon:

Fuel consumption, combined WLTP in l/100 km: 8.1–8.2

CO2 emissions, combined WLTP in g/km: 182–184



BMW M340d xDrive Saloon:

Fuel consumption, combined WLTP in l/100 km: 6.1

CO2 emissions, combined WLTP in g/km: 159–161





[1] Provisional figures



Official figures for fuel consumption, CO2 emissions, electricity consumption and electric range were determined in accordance with the prescribed measurement procedure and comply with Regulation (EU) 715/2007 as amended. WLTP figures take into account any optional equipment in the case of ranges. For vehicles newly type-approved since 01.01.2021, the official specifications exist only according to WLTP. Further information on the NEDC and WLTP measurement methods can be found at www.bmw.de/wltp
