BMW M135i xDRIVE: TECHNICAL DATA

THE 1BMW M135i xDRIVE: TECHNICAL DATA

TECHNICAL DATA OF THE BMW M135i xDRIVE.

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.9

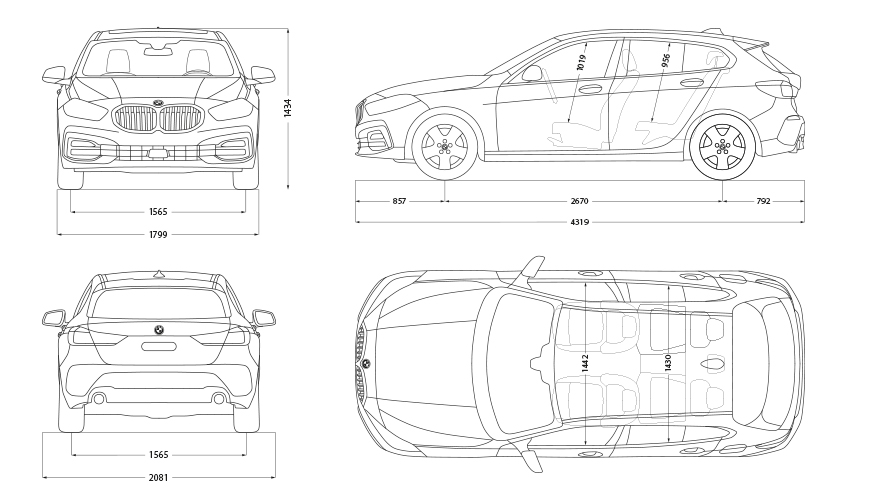

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,365
Weight max in kg 1,845
Permitted load in kg 555
Permitted Axle load front/rear in kg 980 / 940
Allowed unbraked trailer load / drawbar load in kg 680 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.7 - 5.9
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 130 - 135

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.8

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,395
Weight max in kg 1,870
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,005 / 940
Allowed unbraked trailer load / drawbar load in kg 695 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.7 - 5.9
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 129 - 135

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.9

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,365
Weight max in kg 1,845
Permitted load in kg 555
Permitted Axle load front/rear in kg 980 / 940
Allowed unbraked trailer load / drawbar load in kg 680 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.7 - 6.1
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 130 - 138

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.8

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,395
Weight max in kg 1,870
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,005 / 940
Allowed unbraked trailer load / drawbar load in kg 695 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.7 - 6
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 130 - 138

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.9

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,365
Weight max in kg 1,845
Permitted load in kg 555
Permitted Axle load front/rear in kg 980 / 940
Allowed unbraked trailer load / drawbar load in kg 680 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.9 - 6.6
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 134 - 150

System Power

Fuel type Petrol
Power in kW (hp) 100 (136)
Torque in Nm 220
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,499
Engine performance in kW (hp) 100 (136) / 4500 - 6500
Max torque(Nm) per 1/min 220 / 1500 - 4100

Performance

Maximum speed in km/h 213
Acceleration 0–100 km/h in s 8.8

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,395
Weight max in kg 1,870
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,005 / 940
Allowed unbraked trailer load / drawbar load in kg 695 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.9 - 6.6
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 134 - 150

System Power

Fuel type Petrol
Power in kW (hp) 195 (265)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 195 (265) / 4750 - 6500
Max torque(Nm) per 1/min 400 / 1750 - 4500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 6.1

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,520
Weight max in kg 2,000
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,085 / 990
Luggage capacity in l 380 - 1200

Wheels

Tire front 225/40 R18 92 Y XL
Tire rear 225/40 R18 92 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Fuel consumption, combined WLTP in l/100km 6.9 - 7.4
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 157 - 170

System Power

Fuel type Petrol
Power in kW (hp) 225 (306)
Torque in Nm 450
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 225 (306) / 5000 - 6250
Max torque(Nm) per 1/min 450 / 1800 - 4500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.8

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,600
Weight max in kg 2,085
Permitted load in kg 560
Permitted Axle load front/rear in kg 1,120 / 1,020
Luggage capacity in l 380 - 1200

Wheels

Tire front 225/40 R18 92 Y XL
Tire rear 225/40 R18 92 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Fuel consumption, combined WLTP in l/100km 7.4 - 7.9
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 168 - 179

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.3

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,450
Weight max in kg 1,925
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,025 / 980
Allowed unbraked trailer load / drawbar load in kg 725 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.6 - 4.8
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 120 - 125

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.1

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,460
Weight max in kg 1,940
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,040 / 980
Allowed unbraked trailer load / drawbar load in kg 730 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.6 - 4.8
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 121 - 126

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.3

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,450
Weight max in kg 1,925
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,025 / 980
Allowed unbraked trailer load / drawbar load in kg 725 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.6 - 4.9
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 121 - 128

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.1

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,460
Weight max in kg 1,940
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,040 / 980
Allowed unbraked trailer load / drawbar load in kg 730 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 205/55 R16 91 W
Tire rear 205/55 R16 91 W
Rim front 7Jx16 LM
Rim rear 7Jx16 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.7 - 4.9
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 122 - 129

System Power

Fuel type Diesel
Power in kW (hp) 140 (190)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Maximum speed in km/h 231
Acceleration 0–100 km/h in s 7.3

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,525
Weight max in kg 2,000
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,085 / 985
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 225/45 R17 94 Y XL
Tire rear 225/45 R17 94 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.9 - 5.2
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 129 - 136

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 6-speed, manual
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.3

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,450
Weight max in kg 1,925
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,025 / 980
Allowed unbraked trailer load / drawbar load in kg 725 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.8 - 5.3
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 124 - 139

System Power

Fuel type Diesel
Power in kW (hp) 85 (116)
Torque in Nm 270
Gearbox 7-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Displacement in cm³ 1,496
Engine performance in kW (hp) 85 (116) / 4,000
Max torque(Nm) per 1/min 270 / 1750 - 2250

Performance

Maximum speed in km/h 200
Acceleration 0–100 km/h in s 10.1

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,460
Weight max in kg 1,940
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,040 / 980
Allowed unbraked trailer load / drawbar load in kg 730 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 4.8 - 5.3
Fuel capacity in l 42

CO2 Emissions

CO2 emissions, combined WLTP in g/km 125 - 140

System Power

Fuel type Diesel
Power in kW (hp) 140 (190)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Front-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Maximum speed in km/h 231
Acceleration 0–100 km/h in s 7.3

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm 2,670 / 11.4
Ground clearance in mm 153

Weight

Weight not loaded in kg 1,525
Weight max in kg 2,000
Permitted load in kg 550
Permitted Axle load front/rear in kg 1,085 / 985
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 380 - 1200

Wheels

Tire front 235/35 R19 91 Y XL
Tire rear 235/35 R19 91 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption, combined WLTP in l/100km 5.1 - 5.6
Fuel capacity in l 50

CO2 Emissions

CO2 emissions, combined WLTP in g/km 133 - 146

Fuel consumption and CO2 emissions of the BMW M135i xDrive.

  • BMW M135i xDrive:
    Fuel consumption in l/100 km (combined): 7.1-6.8
    CO2 emissions in g/km (combined): 162-155

    Images show optional equipment, screens and displays depend on equipment options.

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tyres available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
