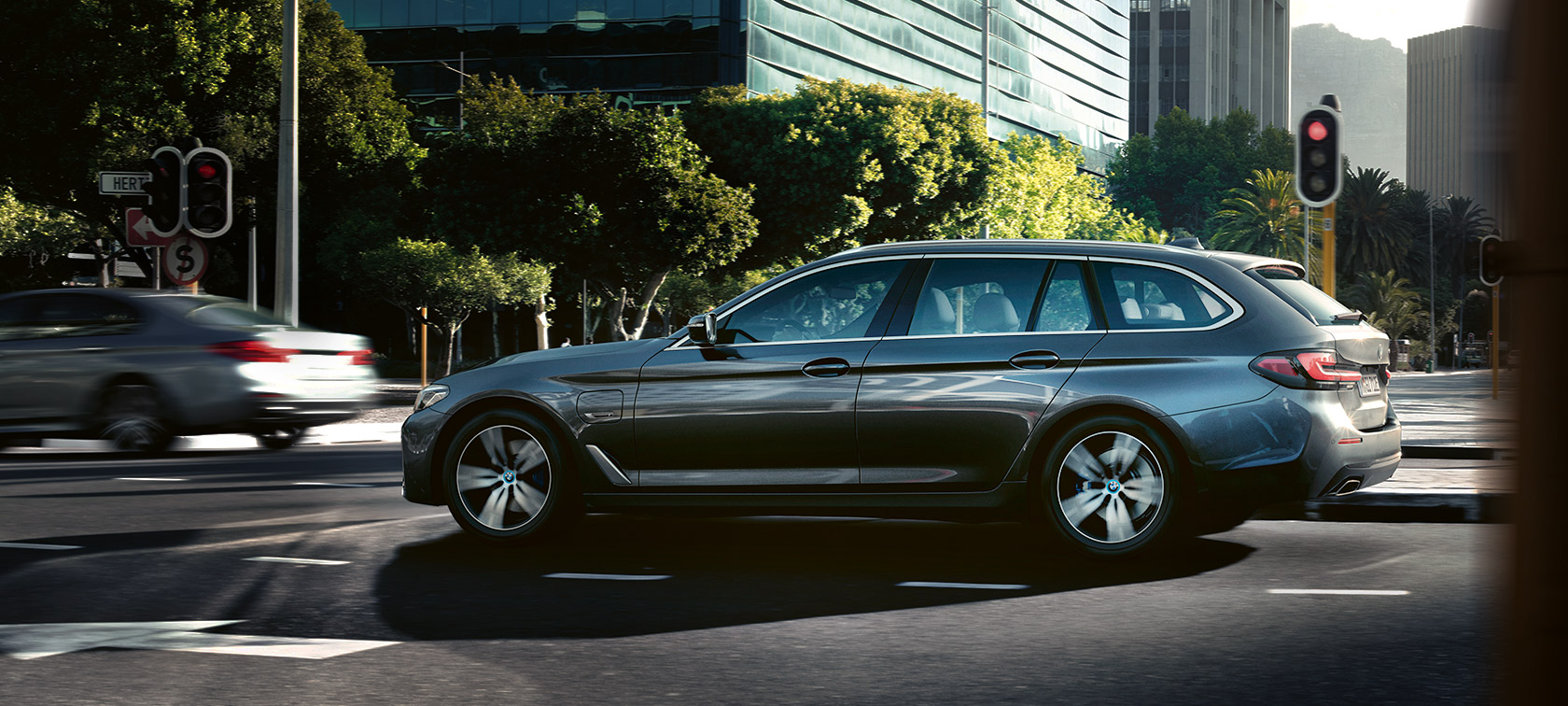

BMW 530e Touring G31 LCI in Sophisto grey metallic, standing in front o a building

THE 5

BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA.

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 5 Series Touring.

Read more
THE 5BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA.

BMW 5 SERIES TOURING: TECHNICAL DATA.

OTR price from

System Power

Fuel Type Driving electric and with petrol
System power in kW (hp) 215 (292) "1"
Max. Torque (Nm) 420 "1"
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

WLTP combined electric range in km 53 - 57
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 3.6

Performance

Top Speed 225
Top Speed Electric 140
Acceleration 6.1

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 143

Weight

Weight not loaded in kg 1,975
Weight Max in kg 2,550
Permitted load in kg 650
Permitted Axle load front/rear in kg 1,090 / 1,540
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 430 - 1560

Wheels

Tire front 245/45 R18 100 Y XL
Tire rear 245/45 R18 100 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Fuel consumption Weighted 1.5 - 1.8
Electric consumption AC Weighted 17 - 18
Tank capacity in l 46

CO2 Emissions

CO2 weighted 35 - 40

System Power

Fuel Type Driving electric and with petrol
System power in kW (hp) 215 (292) "1"
Max. Torque (Nm) 420 "1"
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

WLTP combined electric range in km 49 - 53
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 3.6

Performance

Top Speed 225
Top Speed Electric 140
Acceleration 6.1

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 143

Weight

Weight not loaded in kg 2,035
Weight Max in kg 2,610
Permitted load in kg 650
Permitted Axle load front/rear in kg 1,140 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 430 - 1560

Wheels

Tire front 245/45 R18 100 Y XL
Tire rear 245/45 R18 100 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Fuel consumption Weighted 1.8 - 2.1
Electric consumption AC Weighted 18.5 - 19.5
Tank capacity in l 46

CO2 Emissions

CO2 weighted 41 - 47

System Power

Fuel Type Driving electric and with petrol
System power in kW (hp) 215 (292) "1"
Max. Torque (Nm) 420 "1"
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

WLTP combined electric range in km 53 - 56
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 3.6

Performance

Top Speed 225
Top Speed Electric 140
Acceleration 6.1

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 143

Weight

Weight not loaded in kg 1,975
Weight Max in kg 2,550
Permitted load in kg 650
Permitted Axle load front/rear in kg 1,090 / 1,540
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 430 - 1560

Wheels

Tire front 245/40 R19 101 Y XL
Tire rear 245/40 R19 101 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption Weighted 1.6 - 1.8
Electric consumption AC Weighted 17.1 - 17.9
Tank capacity in l 46

CO2 Emissions

CO2 weighted 35 - 40

System Power

Fuel Type Driving electric and with petrol
System power in kW (hp) 215 (292) "1"
Max. Torque (Nm) 420 "1"
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Range Charging

WLTP combined electric range in km 49 - 52
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 3.6

Performance

Top Speed 225
Top Speed Electric 140
Acceleration 6.1

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 143

Weight

Weight not loaded in kg 2,035
Weight Max in kg 2,610
Permitted load in kg 650
Permitted Axle load front/rear in kg 1,140 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 430 - 1560

Wheels

Tire front 245/40 R19 101 Y XL
Tire rear 245/40 R19 101 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption Weighted 1.8 - 2.1
Electric consumption AC Weighted 18.6 - 19.4
Tank capacity in l 46

CO2 Emissions

CO2 weighted 42 - 47

System Power

Fuel Type Petrol - 48V Mild-Hybrid
System power in kW (hp) 135 (184)
Max. Torque (Nm) 290
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 290 / 1350 - 4250

Performance

Top Speed 225
Acceleration 8.3

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,790
Weight Max in kg 2,410
Permitted load in kg 695
Permitted Axle load front/rear in kg 1,100 / 1,410
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 6.7 - 7
Tank capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 152 - 159

System Power

Fuel Type Petrol
System power in kW (hp) 245 (333)
Max. Torque (Nm) 450
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 245 (333) / 5500 - 6250
Max torque(Nm) per 1/min 450 / 1600 - 4800

Performance

Top Speed 250
Acceleration 5.2

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,925
Weight Max in kg 2,535
Permitted load in kg 685
Permitted Axle load front/rear in kg 1,240 / 1,450
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 7.9 - 8.1
Tank capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 179 - 184

System Power

Fuel Type Petrol - 48V Mild-Hybrid
System power in kW (hp) 135 (184)
Max. Torque (Nm) 290
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 290 / 1350 - 4250

Performance

Top Speed 225
Acceleration 8.3

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,790
Weight Max in kg 2,410
Permitted load in kg 695
Permitted Axle load front/rear in kg 1,100 / 1,410
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 275/30 R20 97 Y XL
Rim front 8Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 6.7 - 7.4
Tank capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 153 - 168

System Power

Fuel Type Petrol
System power in kW (hp) 245 (333)
Max. Torque (Nm) 450
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Engine performance in kW (hp) 245 (333) / 5500 - 6250
Max torque(Nm) per 1/min 450 / 1600 - 4800

Performance

Top Speed 250
Acceleration 5.2

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,925
Weight Max in kg 2,535
Permitted load in kg 685
Permitted Axle load front/rear in kg 1,240 / 1,450
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 275/30 R20 97 Y XL
Rim front 8Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 7.9 - 8.4
Tank capacity in l 68

CO2 Emissions

CO2 charge sustaining combined 180 - 192

System Power

Fuel Type Diesel - 48V Mild-Hybrid
System power in kW (hp) 140 (190)
Max. Torque (Nm) 400
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Top Speed 225
Acceleration 7.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,855
Weight Max in kg 2,470
Permitted load in kg 690
Permitted Axle load front/rear in kg 1,125 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 5.1 - 5.4
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 134 - 140

System Power

Fuel Type Diesel - 48V Mild-Hybrid
System power in kW (hp) 140 (190)
Max. Torque (Nm) 400
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Top Speed 222
Acceleration 7.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,915
Weight Max in kg 2,530
Permitted load in kg 690
Permitted Axle load front/rear in kg 1,180 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 5.4 - 5.6
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 141 - 147

System Power

Fuel Type Diesel
System power in kW (hp) 210 (286)
Max. Torque (Nm) 650
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 210 (286) / 4,000
Max torque(Nm) per 1/min 650 / 1500 - 2500

Performance

Top Speed 250
Acceleration 5.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 2,000
Weight Max in kg 2,610
Permitted load in kg 685
Permitted Axle load front/rear in kg 1,260 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel Consumption charge sustaining combined 5.9 - 6.1
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 153 - 159

System Power

Fuel Type Diesel - 48V Mild-Hybrid
System power in kW (hp) 140 (190)
Max. Torque (Nm) 400
Gearbox Automatic, 8-speed
Drive Type rear wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Top Speed 225
Acceleration 7.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,855
Weight Max in kg 2,470
Permitted load in kg 690
Permitted Axle load front/rear in kg 1,125 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 275/30 R20 97 Y XL
Rim front 8Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 5.1 - 5.7
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 135 - 148

System Power

Fuel Type Diesel - 48V Mild-Hybrid
System power in kW (hp) 140 (190)
Max. Torque (Nm) 400
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 140 (190) / 4,000
Max torque(Nm) per 1/min 400 / 1750 - 2500

Performance

Top Speed 222
Acceleration 7.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 1,915
Weight Max in kg 2,530
Permitted load in kg 690
Permitted Axle load front/rear in kg 1,180 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 275/30 R20 97 Y XL
Rim front 8Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 5.4 - 5.9
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 142 - 155

System Power

Fuel Type Diesel
System power in kW (hp) 210 (286)
Max. Torque (Nm) 650
Gearbox Automatic, 8-speed
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Engine performance in kW (hp) 210 (286) / 4,000
Max torque(Nm) per 1/min 650 / 1500 - 2500

Performance

Top Speed 250
Acceleration 5.6

Measurements

Length/Width/Height 4,963 / 1,868 / 1,498
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12.4
Ground clearance in mm 140

Weight

Weight not loaded in kg 2,000
Weight Max in kg 2,610
Permitted load in kg 685
Permitted Axle load front/rear in kg 1,260 / 1,455
Allowed unbraked trailer load / drawbar load in kg 750 / 90
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 560 - 1700

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 275/30 R20 97 Y XL
Rim front 8Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel Consumption charge sustaining combined 5.9 - 6.4
Tank capacity in l 66

CO2 Emissions

CO2 charge sustaining combined 153 - 167
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions.

  • BMW 530e** Touring:
    Fuel consumption in l/100 km (combined): 1.5 - 1.8
    CO2 emissions in g/km (combined): 35 - 40

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.
