BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

THE 5BMW 5 SERIES TOURING: ENGINES & TECHNICAL DATA

The key facts and figures for the BMW 5 Series Touring at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.

Read more

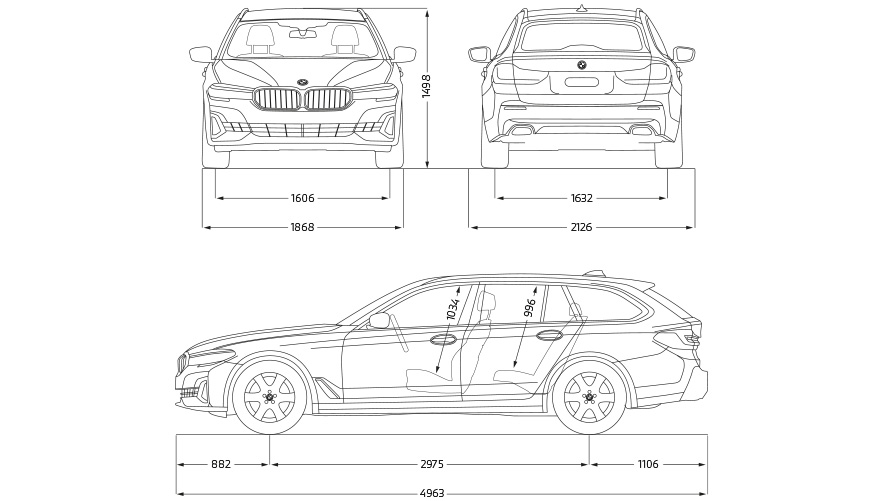

TECHNICAL DATA.

Weight
Unladen weight EU in kg
1,790
Max. permissible weight in kg
2,410
Permitted load in kg
695
Permitted axle load front/rear in kg
1,100/1,410
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
135 (184)/5,000-6,500
Engine torque (Nm) at 1/min
290/1,350-4,250
Compression ratio : 1
11.0
Performance
Top speed in km/h
225
Acceleration 0–100 km/h in s
8.2
Fuel consumption
Urban in l/100 km
7.0-6.7
Extra-urban in l/100 km
5.0-4.8
Combined in l/100 km
5.7-5.5
CO2 combined emissions in g/km
131-126
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,805
Max. permissible weight in kg
2,425
Permitted load in kg
695
Permitted axle load front/rear in kg
1,120/1,430
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.7
Fuel consumption
Urban in l/100 km
7.0-6.8
Extra-urban in l/100 km
5.1-4.8
Combined in l/100 km
5.8-5.6
CO2 combined emissions in g/km
133-127
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,865
Max. permissible weight in kg
2,490
Permitted load in kg
700
Permitted axle load front/rear in kg
1,170/1,440
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
6.3
Fuel consumption
Urban in l/100 km
7.9-7.6
Extra-urban in l/100 km
5.6-5.4
Combined in l/100 km
6.4-6.2
CO2 combined emissions in g/km
147-142
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,925
Max. permissible weight in kg
2,535
Permitted load in kg
685
Permitted axle load front/rear in kg
1,240/1,450
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (hp) at 1/min
245 (333)/5,500-6,250
Engine torque (Nm) at 1/min
450/1,600-4,800
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.2
Fuel consumption
Urban in l/100 km
9.2-9.1
Extra-urban in l/100 km
6.0-5.7
Combined in l/100 km
7.1-7.0
CO2 combined emissions in g/km
164-159
Tank capacity, approx. in l
68
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,830
Max. permissible weight in kg
2,450
Permitted load in kg
695
Permitted axle load front/rear in kg
1,110/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
100 (136)/4,000
Engine torque (Nm) at 1/min
350/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
204
Acceleration 0–100 km/h in s
9.8
Fuel consumption
Urban in l/100 km
4.9-4.7
Extra-urban in l/100 km
4.0-3.8
Combined in l/100 km
4.3-4.2
CO2 combined emissions in g/km
114-109
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,855
Max. permissible weight in kg
2,470
Permitted load in kg
690
Permitted axle load front/rear in kg
1,125/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
120 (163)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
218
Acceleration 0–100 km/h in s
8.6
Fuel consumption
Urban in l/100 km
5.1-4.9
Extra-urban in l/100 km
4.2-3.9
Combined in l/100 km
4.5-4.3
CO2 combined emissions in g/km
119-113
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,915
Max. permissible weight in kg
2,530
Permitted load in kg
690
Permitted axle load front/rear in kg
1,180/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,995
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
140 (190)/4,000
Engine torque (Nm) at 1/min
400/1,750-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
222
Acceleration 0–100 km/h in s
7.6
Fuel consumption
Urban in l/100 km
5.4-5.2
Extra-urban in l/100 km
4.3-4.2
Combined in l/100 km
4.7-4.6
CO2 combined emissions in g/km
124-120
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
1,940
Max. permissible weight in kg
2,550
Permitted load in kg
685
Permitted axle load front/rear in kg
1,210/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
183 (249)/3,250-4,400
Engine torque (Nm) at 1/min
650/1,500-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.9
Fuel consumption
Urban in l/100 km
6.1-5.9
Extra-urban in l/100 km
4.2-4.0
Combined in l/100 km
4.9-4.7
CO2 combined emissions in g/km
128-123
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
2,000
Max. permissible weight in kg
2,610
Permitted load in kg
685
Permitted axle load front/rear in kg
1,260/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
183 (249)/3,250-4,400
Engine torque (Nm) at 1/min
650/1,500-2,500
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
5.6
Fuel consumption
Urban in l/100 km
6.5-6.4
Extra-urban in l/100 km
4.4-4.3
Combined in l/100 km
5.2-5.1
CO2 combined emissions in g/km
137-133
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
275/30 R20 97 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy
Weight
Unladen weight EU in kg
2,000
Max. permissible weight in kg
2,615
Permitted load in kg
690
Permitted axle load front/rear in kg
1,270/1,455
Luggage capacity min. (seats up or roof down) in l
560
Luggage capacity max. (seats down or roof up) in l
1,700
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,993
Stroke/bore in mm
90.0/84.0
Engine power in kW (hp) at 1/min
250 (340)/4,400
Engine torque (Nm) at 1/min
700/1,750-2,250
Compression ratio : 1
16.5
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.8
Fuel consumption
Urban in l/100 km
6.8-6.6
Extra-urban in l/100 km
4.6-4.3
Combined in l/100 km
5.4-5.3
CO2 combined emissions in g/km
142-138
Tank capacity, approx. in l
66
Wheels
Tyre dimensions front
225/55 R17 101 Y XL
Tyre dimensions rear
225/55 R17 101 Y XL
Wheel dimensions and material front
7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear
7.5 J x 17 inches, light-alloy

Fuel consumption and CO2 emissions.

  • BMW 530e Touring(1):
    Fuel consumption in l/100 km (combined): x.x–x.x
    CO2 emissions in g/km (combined): xxx–xxx

    The values of the vehicles labelled with (1) are preliminary.

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
