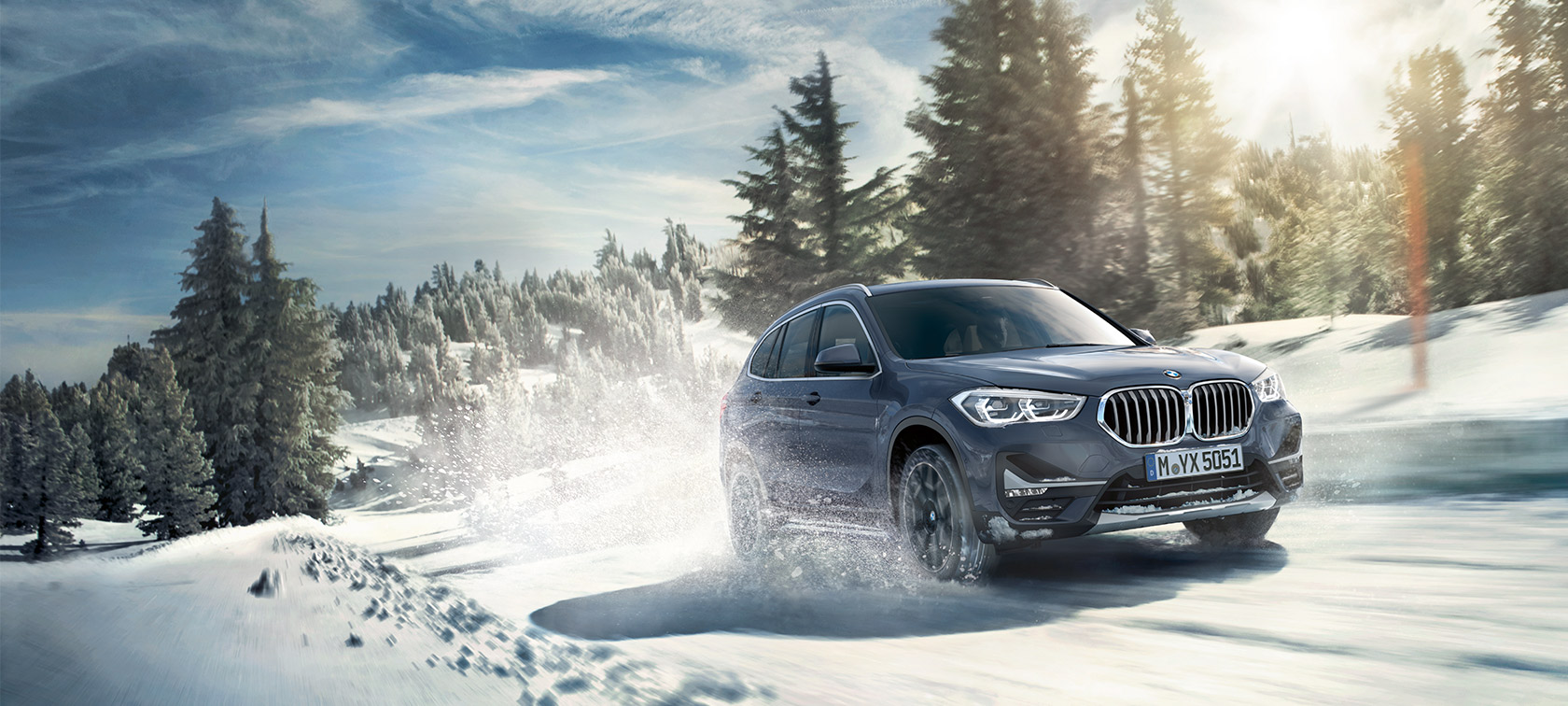

BMW X1 xDrive20i F48 LCI in BMW Individual Storm Baymetallic, driving in winter landscape

THE X1

BMW X1: ENGINES & TECHNICAL DATA

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X1.

Read more
THE X1BMW X1: ENGINES & TECHNICAL DATA
BMW X1

BMW X1: TECHNICAL DATA.

Select Model
Select Transmission

System Power

Fuel Type Driving electric and with petrol
Drive Type all wheel drive

BMW eDrive

Max. torque (Nm) at 1/min 165

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 92 (125) / 5000-5500
Max torque(Nm) per 1/min 220 / 1500-3800

Range Charging

WLTP combined electric range in km 50 - 52
Battery capacity 8.82
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 5

Performance

Top Speed 193
Top Speed Electric 135
Acceleration 6.9

Measurements

Length/Width/Height 4,447 / 1,821 / 1,582
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.7
Ground clearance in mm 147
Measurements
Measurements

Weight

Weight not loaded in kg 1,820
Weight Max in kg 2,330
Permitted load in kg 585
Permitted Axle load front/rear in kg 1,110 / 1,270
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 750 / 750
Trunk capacity min.-max. in l 450 - 1470

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption Weighted 1.8 - 1.9
Electric consumption AC Weighted 15.1 - 15.3
Tank capacity in l 36

CO2 Emissions

CO2 weighted 40 - 43

System Power

Fuel Type Driving electric and with petrol
Drive Type all wheel drive

BMW eDrive

Max. torque (Nm) at 1/min 165

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 92 (125) / 5000-5500
Max torque(Nm) per 1/min 220 / 1500-3800

Range Charging

WLTP combined electric range in km 50 - 51
Battery capacity 8.82
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 5

Performance

Top Speed 193
Top Speed Electric 135
Acceleration 6.9

Measurements

Length/Width/Height 4,447 / 1,821 / 1,582
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.7
Ground clearance in mm 147
Measurements
Measurements

Weight

Weight not loaded in kg 1,820
Weight Max in kg 2,330
Permitted load in kg 585
Permitted Axle load front/rear in kg 1,110 / 1,270
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 750 / 750
Trunk capacity min.-max. in l 450 - 1470

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Fuel consumption Weighted 1.8 - 1.9
Electric consumption AC Weighted 15.1 - 15.3
Tank capacity in l 36

CO2 Emissions

CO2 weighted 41 - 43

System Power

Fuel Type Driving electric and with petrol
Drive Type all wheel drive

BMW eDrive

Max. torque (Nm) at 1/min 165

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 92 (125) / 5000-5500
Max torque(Nm) per 1/min 220 / 1500-3800

Range Charging

WLTP combined electric range in km 49 - 51
Battery capacity 8.82
Maximum Charging Performance 3.7
AC charging time in hours, e.g. at wallbox (0% - 100%) 5

Performance

Top Speed 193
Top Speed Electric 135
Acceleration 6.9

Measurements

Length/Width/Height 4,447 / 1,821 / 1,582
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.7
Ground clearance in mm 147
Measurements
Measurements

Weight

Weight not loaded in kg 1,820
Weight Max in kg 2,330
Permitted load in kg 585
Permitted Axle load front/rear in kg 1,110 / 1,270
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 750 / 750
Trunk capacity min.-max. in l 450 - 1470

Wheels

Tire front 225/45 R19 96 W XL
Tire rear 225/45 R19 96 W XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Fuel consumption Weighted 1.8 - 1.9
Electric consumption AC Weighted 15.1 - 15.4
Tank capacity in l 36

CO2 Emissions

CO2 weighted 41 - 44

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 205
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,480
Weight Max in kg 2,000
Permitted load in kg 595
Permitted Axle load front/rear in kg 995 / 1,035
Allowed unbraked trailer load / drawbar load in kg 740 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.2 - 6.4
Tank capacity in l 51

CO2 Emissions

Combined in g/km 141 - 145

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 203
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,510
Weight Max in kg 2,025
Permitted load in kg 590
Permitted Axle load front/rear in kg 1,020 / 1,035
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.4 - 6.6
Tank capacity in l 51

CO2 Emissions

Combined in g/km 145 - 149

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 226
Acceleration 7.6

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,570
Weight Max in kg 2,065
Permitted load in kg 570
Permitted Axle load front/rear in kg 1,050 / 1,050
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.5 - 6.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 149 - 153

System Power

Fuel Type Petrol
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 223
Acceleration 7.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,655
Weight Max in kg 2,155
Permitted load in kg 575
Permitted Axle load front/rear in kg 1,090 / 1,100
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 7 - 7.1
Tank capacity in l 61

CO2 Emissions

Combined in g/km 159 - 163

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 205
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,480
Weight Max in kg 2,000
Permitted load in kg 595
Permitted Axle load front/rear in kg 995 / 1,035
Allowed unbraked trailer load / drawbar load in kg 740 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.2 - 6.4
Tank capacity in l 51

CO2 Emissions

Combined in g/km 141 - 146

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 203
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,510
Weight Max in kg 2,025
Permitted load in kg 590
Permitted Axle load front/rear in kg 1,020 / 1,035
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.4 - 6.6
Tank capacity in l 51

CO2 Emissions

Combined in g/km 146 - 150

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 226
Acceleration 7.6

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,570
Weight Max in kg 2,065
Permitted load in kg 570
Permitted Axle load front/rear in kg 1,050 / 1,050
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.6 - 6.8
Tank capacity in l 51

CO2 Emissions

Combined in g/km 149 - 154

System Power

Fuel Type Petrol
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 223
Acceleration 7.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,655
Weight Max in kg 2,155
Permitted load in kg 575
Permitted Axle load front/rear in kg 1,090 / 1,100
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 7 - 7.2
Tank capacity in l 61

CO2 Emissions

Combined in g/km 160 - 164

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 205
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,480
Weight Max in kg 2,000
Permitted load in kg 595
Permitted Axle load front/rear in kg 995 / 1,035
Allowed unbraked trailer load / drawbar load in kg 740 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.3 - 6.4
Tank capacity in l 51

CO2 Emissions

Combined in g/km 142 - 146

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 203
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,510
Weight Max in kg 2,025
Permitted load in kg 590
Permitted Axle load front/rear in kg 1,020 / 1,035
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.4 - 6.6
Tank capacity in l 51

CO2 Emissions

Combined in g/km 146 - 151

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 226
Acceleration 7.6

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,570
Weight Max in kg 2,065
Permitted load in kg 570
Permitted Axle load front/rear in kg 1,050 / 1,050
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 6.6 - 6.8
Tank capacity in l 51

CO2 Emissions

Combined in g/km 150 - 154

System Power

Fuel Type Petrol
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 223
Acceleration 7.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,655
Weight Max in kg 2,155
Permitted load in kg 575
Permitted Axle load front/rear in kg 1,090 / 1,100
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 7 - 7.2
Tank capacity in l 61

CO2 Emissions

Combined in g/km 160 - 164

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 205
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,480
Weight Max in kg 2,000
Permitted load in kg 595
Permitted Axle load front/rear in kg 995 / 1,035
Allowed unbraked trailer load / drawbar load in kg 740 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/45 R19 96 Y XL
Tire rear 225/45 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Combined in l/100km 6.3 - 6.5
Tank capacity in l 51

CO2 Emissions

Combined in g/km 142 - 148

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 3 / 4
Technical capacity in cm3 1,499
Engine performance in kW (hp) 100 (136) / 4500-6500
Max torque(Nm) per 1/min 220 / 1500-4100

Performance

Top Speed 203
Acceleration 9.7

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,510
Weight Max in kg 2,025
Permitted load in kg 590
Permitted Axle load front/rear in kg 1,020 / 1,035
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/45 R19 96 Y XL
Tire rear 225/45 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Combined in l/100km 6.4 - 6.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 146 - 152

System Power

Fuel Type Petrol
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 226
Acceleration 7.6

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,570
Weight Max in kg 2,065
Permitted load in kg 570
Permitted Axle load front/rear in kg 1,050 / 1,050
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/45 R19 96 Y XL
Tire rear 225/45 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Combined in l/100km 6.6 - 6.8
Tank capacity in l 51

CO2 Emissions

Combined in g/km 150 - 156

System Power

Fuel Type Petrol
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Engine performance in kW (hp) 131 (178) / 5000-5500
Max torque(Nm) per 1/min 280 / 1350-4200

Performance

Top Speed 223
Acceleration 7.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,655
Weight Max in kg 2,155
Permitted load in kg 575
Permitted Axle load front/rear in kg 1,090 / 1,100
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/45 R19 96 Y XL
Tire rear 225/45 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Combined in l/100km 7 - 7.3
Tank capacity in l 61

CO2 Emissions

Combined in g/km 160 - 165

System Power

Fuel Type Diesel
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 205
Acceleration 9.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,585
Weight Max in kg 2,090
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,055 / 1,070
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5 - 5.1
Tank capacity in l 51

CO2 Emissions

Combined in g/km 130 - 133

System Power

Fuel Type Diesel
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 205
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,615
Weight Max in kg 2,125
Permitted load in kg 585
Permitted Axle load front/rear in kg 1,095 / 1,070
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5.2 - 5.3
Tank capacity in l 51

CO2 Emissions

Combined in g/km 136 - 140

System Power

Fuel Type Diesel
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 204
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,685
Weight Max in kg 2,190
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,115 / 1,110
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5.5 - 5.6
Tank capacity in l 51

CO2 Emissions

Combined in g/km 144 - 147

System Power

Fuel Type Diesel
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 204
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,685
Weight Max in kg 2,190
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,115 / 1,110
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/45 R19 96 Y XL
Tire rear 225/45 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8Jx19 LM

Consumption

Combined in l/100km 5.5 - 5.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 145 - 150

System Power

Fuel Type Diesel
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 204
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,685
Weight Max in kg 2,190
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,115 / 1,110
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5.5 - 5.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 144 - 148

System Power

Fuel Type Diesel
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 204
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,685
Weight Max in kg 2,190
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,115 / 1,110
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5.5 - 5.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 145 - 148

System Power

Fuel Type Diesel
Drive Type all wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 140 (190) / 4000
Max torque(Nm) per 1/min 400 / 1750-2500

Performance

Top Speed 219
Acceleration 7.8

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,695
Weight Max in kg 2,200
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,115 / 1,120
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,000 / 2,000
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5.5 - 5.7
Tank capacity in l 51

CO2 Emissions

Combined in g/km 143 - 148

System Power

Fuel Type Diesel
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 205
Acceleration 9.3

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 183
Measurements
Measurements

Weight

Weight not loaded in kg 1,585
Weight Max in kg 2,090
Permitted load in kg 580
Permitted Axle load front/rear in kg 1,055 / 1,070
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,800 / 1,800
Trunk capacity min.-max. in l 505 - 1550

Wheels

Tire front 225/55 R17 97 W
Tire rear 225/55 R17 97 W
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Combined in l/100km 5 - 5.1
Tank capacity in l 51

CO2 Emissions

Combined in g/km 130 - 135

System Power

Fuel Type Diesel
Drive Type front wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,995
Engine performance in kW (hp) 110 (150) / 4000
Max torque(Nm) per 1/min 350 / 1750-2500

Performance

Top Speed 205
Acceleration 9.4

Measurements

Length/Width/Height 4,447 / 1,821 / 1,598
Width incl. mirrors (driver / passenger side) in mm 2060 (1035 / 1025)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm
