BMW 5 SERIES SALOON: ENGINES & TECHNICAL DATA

The key facts and figures for the BMW 5 Series Saloon at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.

Read more
THE 5BMW 5 SERIES SALOON: ENGINES & TECHNICAL DATA

TECHNICAL DATA.

System Power

System power in kW (hp) 215 (292)
Max. Torque (Nm) 420

BMW eDrive

Electric power 80 / 109
Max. torque (Nm) at 1/min 265

Engine

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Stroke/Drilling in mm 94.6 / 82
Engine performance in kW (hp) 135 (184) / 5000-6500
Max torque(Nm) per 1/min 300 / 1350-4000
Compression:1 11

Range Charging

WLTP combined electric range in km 58 - 60
Battery type Li-Ion
Battery capacity 11.15
Charging duration AC 2.6
Charging duration in hrs (wallbox / public charging with max 3.7kW, 0-100%) 3.6
Charging duration in hrs (household socket 230V / 12.5A, 0-80%) 4.3
Charging duration in hrs (household socket 230V / 12.5A, 0-100%) 6

Performance

Top Speed 235
Top Speed Electric 140
Acceleration 5.9

Measurements

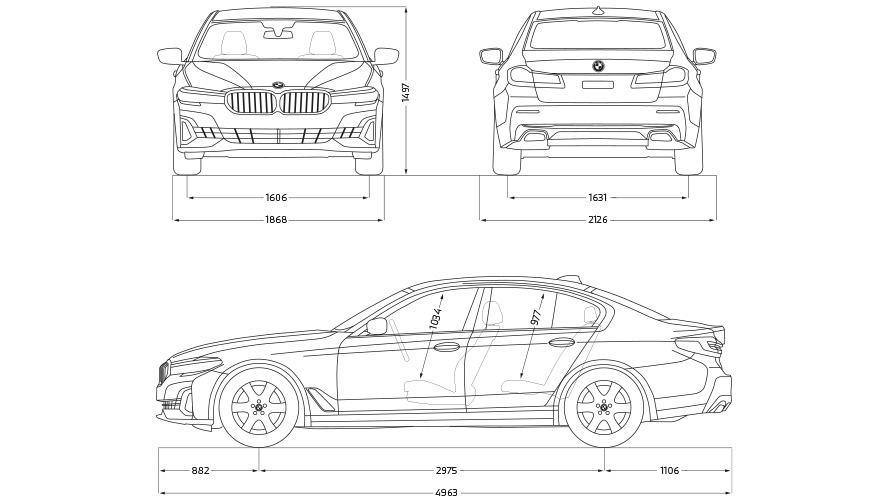

Length/Width/Height 4,963 / 1,868 / 1,483
Width incl. mirrors (driver / passenger side) in mm 2126 (1069 / 1057)
Wheelbase in mm/Wheel turn in m 2,975 / 12
Ground clearance in mm 150
Measurements
Measurements

Weight

Weight not loaded in kg 1,910
Weight Max in kg 2,505
Permitted load in kg 670
Permitted Axle load front/rear in kg 1,120 / 1,450
Allowed unbraked trailer load / drawbar load in kg 750 / 80
Allowed braked trailer load up to 12 % / 8 % incline in kg 1,700 / 1,700
Trunk capacity min.-max. in l 410

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Electricity consumption in kWh/100km 21.1 - 22.1
Fuel consumption Weighted 1.4 - 1.5
Electric consumption AC Weighted 16.5 - 17.1
Tank capacity in l 46

CO2 Emissions

CO2 weighted 31 - 35

FUEL CONSUMPTION AND CO2 EMISSIONS.

BMW 530e Sedan:
Fuel consumption in l/100 km (combined): 1.8–1.6
CO2 emissions in g/km (combined): 40–36


The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.


Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2


The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.

Read more

Fuel consumption and CO2 emissions.

  • The values for fuel consumption, CO2 emissions and energy consumption shown have been determined according to the WLTP test. WLTP has been used as the applicable fuel and energy consumption and CO2 emissions figure from 1 January 2021 for vehicle registration tax (VRT). The figures were previously based on the NEDC equivalent. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load. For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel. Plug-in hybrid and battery electric vehicles require mains electricity for charging. More information on the WLTP test procedure can be found here: https://www.bmw.ie/en/topics/fascination-bmw/efficient-dynamics/consumption-emissions.html

    A guide on fuel economy and CO2 emissions which contains data for all new passenger car models is available at any point of sale free of charge.
