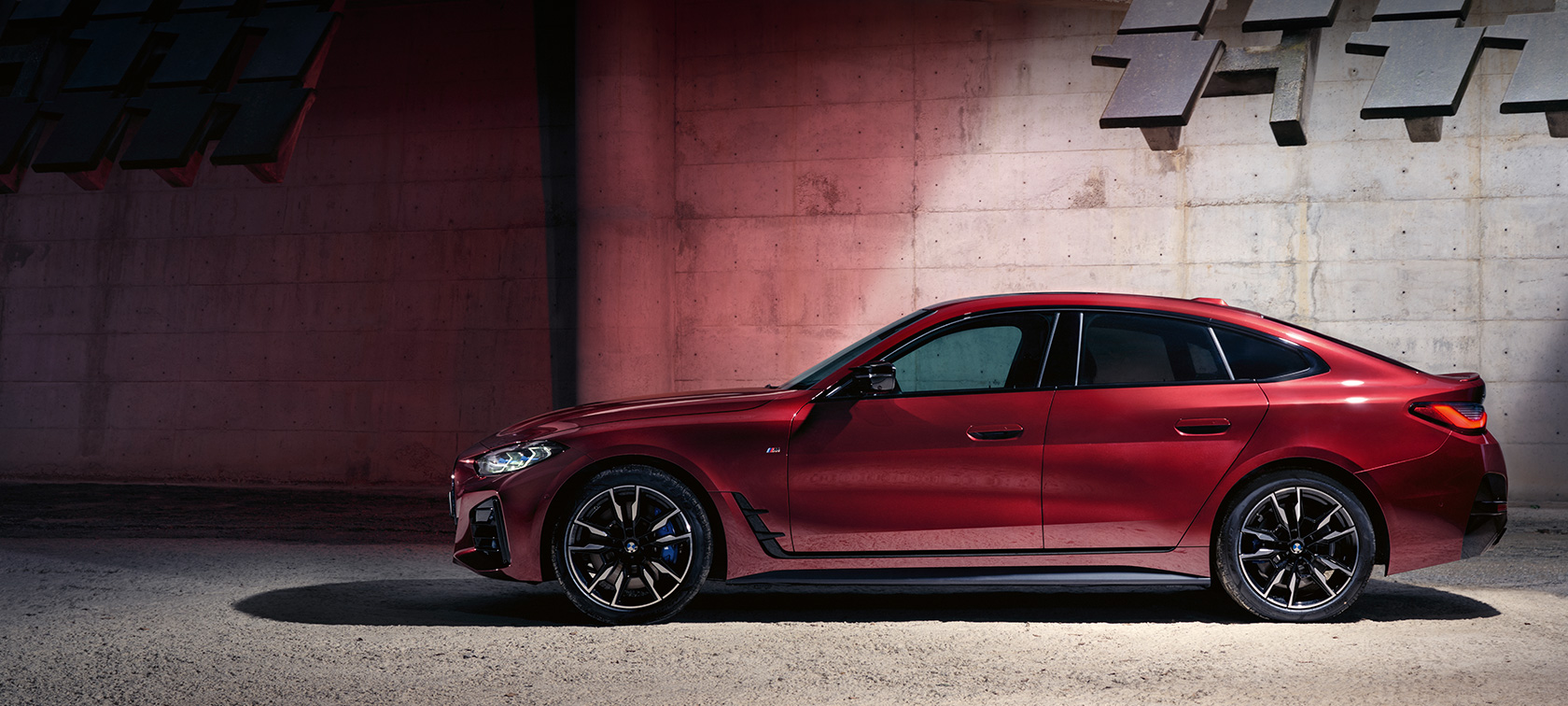

BMW 4 Series Gran Coupé G26 BMW Individual Aventurine Red metallic

THE 4

THE BMW 4 SERIES GRAN COUPÉ: ENGINES & TECHNICAL DATA.

The key facts and figures on the BMW 4 Series Gran Coupé at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.

Read more
THE 4THE BMW 4 SERIES GRAN COUPÉ: ENGINES & TECHNICAL DATA.

TECHNICAL DATA OF THE BMW 4 SERIES GRAN COUPÉ.

System Power

Fuel type Electric
Power in kW (hp) 210 (286)
Torque in Nm 400
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 80 (109)
Nominal torque in Nm 400

Range Charging

Electric range, WLTP in km 445 - 464
Max. charging performance AC in kW 11
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 7
Maximum DC charging performance in kW 180
Charging time DC in min, e.g. at High-Power-Charging Station, 10-80% state of charge (SOC) 32

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 6

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 2,065
Weight max in kg 2,545
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,140 / 1,525
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 255/35 R20 100 Y
Rim front 8,5Jx20 LM
Rim rear 9Jx20 LM

Consumption

Electricity consumption in kWh/100km 16.5 - 17.2

CO2 Emissions

CO2 emissions, combined WLTP in g/km 0

System Power

Fuel type Electric
Power in kW (hp) 250 (340)
Torque in Nm 430
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 105 (143)
Nominal torque in Nm 430

Range Charging

Electric range, WLTP in km 542 - 567
Max. charging performance AC in kW 11
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 8.5
Maximum DC charging performance in kW 205
Charging time DC in min, e.g. at High-Power-Charging Station, 10-80% state of charge (SOC) 31

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 5.6

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 2,125
Weight max in kg 2,605
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,140 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 255/35 R20 100 Y
Rim front 8,5Jx20 LM
Rim rear 9Jx20 LM

Consumption

Electricity consumption in kWh/100km 16.8 - 17.6

CO2 Emissions

CO2 emissions, combined WLTP in g/km 0

System Power

Fuel type Electric
Power in kW (hp) 400 (544)
Torque in Nm 795
Gearbox 1-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Continous power in kW (hp) 125 (170)
Nominal torque in Nm 795

Range Charging

Electric range, WLTP in km 415 - 512
Max. charging performance AC in kW 11
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 8.5
Maximum DC charging performance in kW 205
Charging time DC in min, e.g. at High-Power-Charging Station, 10-80% state of charge (SOC) 31

Performance

Maximum speed in km/h 225
Acceleration 0–100 km/h in s 3.9

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 2,290
Weight max in kg 2,735
Permitted load in kg 520
Permitted Axle load front/rear in kg 1,270 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/45 R18 100 Y XL
Tire rear 255/45 R18 103 Y XL
Rim front 8,5Jx18 LM
Rim rear 9Jx18 LM

Consumption

Electricity consumption in kWh/100km 18.4 - 22.5

CO2 Emissions

CO2 emissions, combined WLTP in g/km 0

System Power

Fuel type Electric
Power in kW (hp) 250 (340)
Torque in Nm 430
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 105 (143)
Nominal torque in Nm 430

Range Charging

Electric range, WLTP in km 558 - 589
Max. charging performance AC in kW 11
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 8.5
Maximum DC charging performance in kW 205
Charging time DC in min, e.g. at High-Power-Charging Station, 10-80% state of charge (SOC) 31

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 5.6

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 2,125
Weight max in kg 2,605
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,140 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Electricity consumption in kWh/100km 16.1 - 17.1

CO2 Emissions

CO2 emissions, combined WLTP in g/km 0

System Power

Fuel type Electric
Power in kW (hp) 210 (286)
Torque in Nm 400
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 80 (109)
Nominal torque in Nm 400

Range Charging

Electric range, WLTP in km 458 - 482
Max. charging performance AC in kW 11
Charging time AC in h, e.g. at BMW Wallbox, 0-100% state of charge (SOC) 7
Maximum DC charging performance in kW 180
Charging time DC in min, e.g. at High-Power-Charging Station, 10-80% state of charge (SOC) 32

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 6

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 2,065
Weight max in kg 2,545
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,140 / 1,525
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

Consumption

Electricity consumption in kWh/100km 15.8 - 16.7

CO2 Emissions

CO2 emissions, combined WLTP in g/km 0

System Power

Fuel type Petrol
Power in kW (hp) 135 (184)
Torque in Nm 300
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Performance

Maximum speed in km/h 235
Acceleration 0–100 km/h in s 7.9

Measurements

Length/Width/Height 4,783 / 1,852 / 1,442
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12
Ground clearance in mm 140
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 1,695
Weight max in kg 2,175
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,015 / 1,245
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 255/35 R20 97 Y XL
Rim front 8,5Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel consumption, combined WLTP in l/100km 6.8 - 7.2
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 154 - 163

System Power

Fuel type Petrol
Power in kW (hp) 135 (184)
Torque in Nm 300
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Engine

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Engine performance in kW (hp) 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Performance

Maximum speed in km/h 235
Acceleration 0–100 km/h in s 7.9

Measurements

Length/Width/Height 4,783 / 1,852 / 1,442
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12
Ground clearance in mm 140
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 1,695
Weight max in kg 2,175
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,015 / 1,245
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 255/35 R20 97 Y XL
Rim front 8,5Jx20 LM
Rim rear 9Jx20 LM

Consumption

Fuel consumption, combined WLTP in l/100km 6.8 - 7.2
Fuel capacity in l 59

CO2 Emissions

CO2 emissions, combined WLTP in g/km 154 - 163

System Power

Fuel type Petrol – 48 Volt Mild-Hybrid
Power in kW (hp) 275 (374)
Torque in Nm 500
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Electric power 8 (11)
Nominal torque in Nm 25

Engine

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,998
Engine performance in kW (hp) 275 (374) / 5500 - 6500
Max torque(Nm) per 1/min 500 / 1900 - 5000

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.7

Measurements

Length/Width/Height 4,783 / 1,852 / 1,442
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12
Ground clearance in mm 140
BMW 4 Series Gran Coupé G26 technical data sketch
BMW 4 Series Gran Coupé G26 technical data sketch

Weight

Weight not loaded in kg 1,900
Weight max in kg 2,380
Permitted load in kg 555
Permitted Axle load front/rear in kg 1,145 / 1,325
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/45 R18 100 Y XL
Tire rear 245/45 R18 100 Y XL
Rim front 8,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Fuel Consumption charge sustaining combined 8 - 8.3
Fuel capacity in l 59

CO2 Emissions

CO2 charge sustaining combined 182 - 190
BMW WHEELS & TYRES.

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

Fuel consumption and CO2 emissions of the BMW 4 Series Gran Coupé.

BMW M440i xDrive Gran Coupé:
Fuel consumption in l/100 km (combined): 8.5–8.0
CO2 emissions in g/km (combined): 194–181

Official data on fuel consumption and CO2 emissions were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp.

Read more

Note: All pricing is TBC until CO2 and NOx emissions are confirmed closer to launch.

Read more

Fuel consumption and CO2 emissions of the BMW 4 Series Gran Coupé.

BMW M440i xDrive Gran Coupé:
Fuel consumption in l/100 km (combined): 8.5–8.0
CO2 emissions in g/km (combined): 193–181

Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.





Read more
​

Fuel consumption and CO2 emissions of the BMW 4 Series Gran Coupé.

  • BMW M440i xDrive Gran Coupé:
    Fuel consumption in l/100 km (combined): 8.5–8.0
    CO2 emissions in g/km (combined): 194–181

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles cars can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from The Society of the Irish Motor Industry, 5 Upper Pembroke Street, Dublin 2.
