THE ALL-NEW BMW 4 SERIES CONVERTIBLE: ENGINES & TECHNICAL DATA.
The key facts and figures on the new BMW 4 Series Convertible at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.
The key facts and figures on the new BMW 4 Series Convertible at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.
TECHNICAL DATA OF THE ALL-NEW BMW 4 SERIES CONVERTIBLE.
No search result found. Please try another input
Fuel Type | Petrol |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,998 |
Engine performance in kW (hp) | 135 (184) / 5000-6500 |
Max torque(Nm) per 1/min | 300 / 1350-4000 |
Top Speed | 236 |
---|---|
Acceleration | 8.2 |

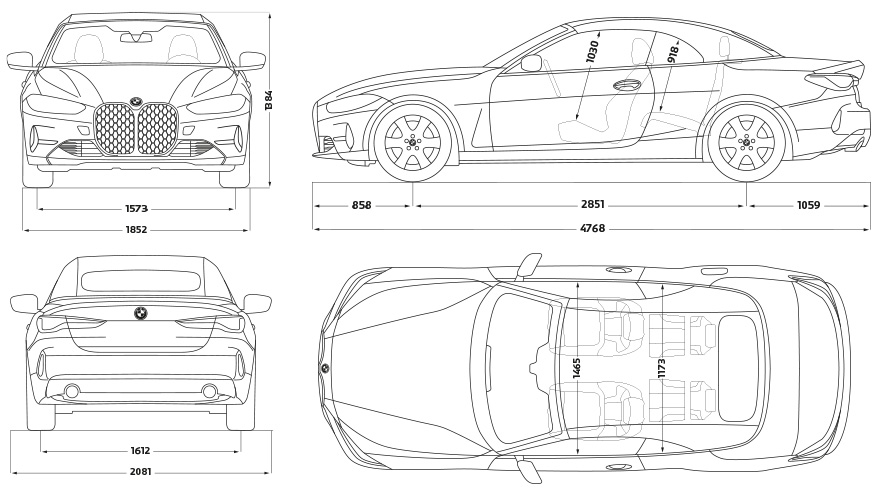

Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,765 |
---|---|
Weight Max in kg | 2,185 |
Permitted load in kg | 495 |
Permitted Axle load front/rear in kg | 990 / 1,240 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Combined in l/100km | 6.8 - 7.1 |
---|---|
Tank capacity in l | 59 |
Combined in g/km | 154 - 161 |
---|
Fuel Type | Petrol |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,998 |
Engine performance in kW (hp) | 180 (245) / 4500-6500 |
Max torque(Nm) per 1/min | 400 / 1600-4000 |
Top Speed | 250 |
---|---|
Acceleration | 6.4 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,790 |
---|---|
Weight Max in kg | 2,200 |
Permitted load in kg | 485 |
Permitted Axle load front/rear in kg | 1,000 / 1,240 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Combined in l/100km | 7 - 7.4 |
---|---|
Tank capacity in l | 59 |
Combined in g/km | 160 - 167 |
---|
Fuel Type | Petrol |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,998 |
Engine performance in kW (hp) | 135 (184) / 5000-6500 |
Max torque(Nm) per 1/min | 300 / 1350-4000 |
Top Speed | 236 |
---|---|
Acceleration | 8.2 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,765 |
---|---|
Weight Max in kg | 2,185 |
Permitted load in kg | 495 |
Permitted Axle load front/rear in kg | 990 / 1,240 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Combined in l/100km | 7 - 7.1 |
---|---|
Tank capacity in l | 59 |
Combined in g/km | 159 - 162 |
---|
Fuel Type | Petrol |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,998 |
Engine performance in kW (hp) | 180 (245) / 4500-6500 |
Max torque(Nm) per 1/min | 400 / 1600-4000 |
Top Speed | 250 |
---|---|
Acceleration | 6.4 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,790 |
---|---|
Weight Max in kg | 2,200 |
Permitted load in kg | 485 |
Permitted Axle load front/rear in kg | 1,000 / 1,240 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Combined in l/100km | 7.3 - 7.4 |
---|---|
Tank capacity in l | 59 |
Combined in g/km | 165 - 168 |
---|
Fuel Type | Petrol - 48V Mild-Hybrid |
---|---|
Drive Type | all wheel drive |
Cylinder/ Valves per cylinder | 6 / 4 |
---|---|
Technical capacity in cm3 | 2,998 |
Engine performance in kW (hp) | 275 (374) / 5500-6500 |
Max torque(Nm) per 1/min | 500 / 1900-5000 |
Top Speed | 250 |
---|---|
Acceleration | 4.9 |
Length/Width/Height | 4,770 / 1,852 / 1,394 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 12 |
Ground clearance in mm | 126 |
Weight not loaded in kg | 1,965 |
---|---|
Weight Max in kg | 2,390 |
Permitted load in kg | 500 |
Permitted Axle load front/rear in kg | 1,120 / 1,300 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,800 / 1,800 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/45 R18 95 Y XL |
---|---|
Tire rear | 255/40 R18 99 Y XL |
Rim front | 7,5Jx18 LM |
Rim rear | 8,5Jx18 LM |
Fuel Consumption charge sustaining combined | 8 - 8.1 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 182 - 184 |
---|
Fuel Type | Diesel - 48V Mild-Hybrid |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,995 |
Engine performance in kW (hp) | 140 (190) / 4000 |
Max torque(Nm) per 1/min | 400 / 1750-2500 |
Top Speed | 236 |
---|---|
Acceleration | 7.6 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,850 |
---|---|
Weight Max in kg | 2,270 |
Permitted load in kg | 495 |
Permitted Axle load front/rear in kg | 1,025 / 1,280 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Fuel Consumption charge sustaining combined | 4.9 - 5.2 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 129 - 137 |
---|
Fuel Type | Diesel - 48V Mild-Hybrid |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 6 / 4 |
---|---|
Technical capacity in cm3 | 2,993 |
Engine performance in kW (hp) | 210 (286) / 4000 |
Max torque(Nm) per 1/min | 650 / 1500-2500 |
Top Speed | 250 |
---|---|
Acceleration | 5.8 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,955 |
---|---|
Weight Max in kg | 2,380 |
Permitted load in kg | 500 |
Permitted Axle load front/rear in kg | 1,110 / 1,305 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,800 / 1,800 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Fuel Consumption charge sustaining combined | 5.4 - 5.6 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 141 - 148 |
---|
Fuel Type | Diesel - 48V Mild-Hybrid |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 4 / 4 |
---|---|
Technical capacity in cm3 | 1,995 |
Engine performance in kW (hp) | 140 (190) / 4000 |
Max torque(Nm) per 1/min | 400 / 1750-2500 |
Top Speed | 236 |
---|---|
Acceleration | 7.6 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,850 |
---|---|
Weight Max in kg | 2,270 |
Permitted load in kg | 495 |
Permitted Axle load front/rear in kg | 1,025 / 1,280 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,600 / 1,600 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Fuel Consumption charge sustaining combined | 5.1 - 5.2 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 134 - 137 |
---|
Fuel Type | Diesel - 48V Mild-Hybrid |
---|---|
Drive Type | rear wheel drive |
Cylinder/ Valves per cylinder | 6 / 4 |
---|---|
Technical capacity in cm3 | 2,993 |
Engine performance in kW (hp) | 210 (286) / 4000 |
Max torque(Nm) per 1/min | 650 / 1500-2500 |
Top Speed | 250 |
---|---|
Acceleration | 5.8 |
Length/Width/Height | 4,768 / 1,852 / 1,384 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 11.4 |
Ground clearance in mm | 124 |
Weight not loaded in kg | 1,955 |
---|---|
Weight Max in kg | 2,380 |
Permitted load in kg | 500 |
Permitted Axle load front/rear in kg | 1,110 / 1,305 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,800 / 1,800 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/40 R19 93 Y XL |
---|---|
Tire rear | 255/35 R19 96 Y XL |
Rim front | 8Jx19 LM |
Rim rear | 8,5Jx19 LM |
Fuel Consumption charge sustaining combined | 5.6 - 5.7 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 146 - 148 |
---|
Fuel Type | Diesel - 48V Mild-Hybrid |
---|---|
Drive Type | all wheel drive |
Cylinder/ Valves per cylinder | 6 / 4 |
---|---|
Technical capacity in cm3 | 2,993 |
Engine performance in kW (hp) | 250 (340) / 4400 |
Max torque(Nm) per 1/min | 700 / 1750-2250 |
Top Speed | 250 |
---|---|
Acceleration | 5 |
Length/Width/Height | 4,770 / 1,852 / 1,394 |
---|---|
Width incl. mirrors (driver / passenger side) in mm | 2081 (1046 / 1035) |
Wheelbase in mm/Wheel turn in m | 2,851 / 12 |
Ground clearance in mm | 126 |
Weight not loaded in kg | 2,055 |
---|---|
Weight Max in kg | 2,480 |
Permitted load in kg | 500 |
Permitted Axle load front/rear in kg | 1,160 / 1,340 |
Allowed unbraked trailer load / drawbar load in kg | 750 / 75 |
Allowed braked trailer load up to 12 % / 8 % incline in kg | 1,800 / 1,800 |
Trunk capacity min.-max. in l | 385 |
Tire front | 225/45 R18 95 Y XL |
---|---|
Tire rear | 255/40 R18 99 Y XL |
Rim front | 7,5Jx18 LM |
Rim rear | 8,5Jx18 LM |
Fuel Consumption charge sustaining combined | 6.2 - 6.3 |
---|---|
Tank capacity in l | 59 |
CO2 charge sustaining combined | 162 - 164 |
---|
Fuel Consumption and Co2 Emissions of the Bmw 4 Series Convertible.
The values for fuel consumption, CO2 emissions and energy consumption shown have been determined according to the WLTP test. WLTP has been used as the applicable fuel and energy consumption and CO2 emissions figure from 1 January 2021 for vehicle registration tax (VRT). The figures were previously based on the NEDC equivalent. Figures shown are for comparability purposes. Only compare fuel consumption, CO2 and electric range figures with other cars tested to the same technical procedures. These figures may not reflect real life driving results, which will depend upon a number of factors including the starting charge of the battery, accessories fitted (post-registration), variations in weather, driving styles and vehicle load. For plug-in hybrid vehicles these figures were obtained using a combination of battery power and fuel. Plug-in hybrid and battery electric vehicles require mains electricity for charging. More information on the WLTP test procedure can be found here: https://www.bmw.ie/en/topics/fascination-bmw/efficient-dynamics/consumption-emissions.html
A guide on fuel economy and CO2 emissions which contains data for all new passenger car models is available at any point of sale free of charge.
